PTH flat line high current inductor

PTH flat line high current inductor

April 10 , 2023 0

EPCOS/TDK ERU 33 chokes are PTH flat line high current inductors with high current rating and low DC resistance for through-hole installation. These chokes are designed for ultra-high saturation currents from 32A to 83A (100°C). The ERU 33 choke has a rated inductance range of 33.2μH to 10μH, tolerance of ±12%, and < 2MHz resonant frequency.These chokes are also available in thin design, low DC resistance range from 0.85mΩ to 1.2mΩ, and small size.

The ERU 33 choke has flat windings and compact size (33mm x 33mm x 15mm). By attaching the flat windings to the magnetic core in a thermal connection manner, the large ferrite surface can be coupled to the heat sink for effective heat dissipation.

These chokes operate in a temperature range of -40°C to 150°C and can be easily customized to comply with AEC-Q200 REV D standards and RoHS instructions. The ERU 33 choke is used as an energy storage choke for the step-down/boost chokes of 48V plate-net converters and DC-DC converters.

Features

● Low thermal resistance between the flat winding and the core
● Through-hole installation
● Improve the performance of AC choke coil
● Improved thermal conductivity
● Easily customizable
● Small space holder
● High rated current value
● Thin type
● Comply with AEC-Q200 REV D standard and RoHS directive
● Pallet package is available

Applications

● Energy storage choke:
● Step-down/boost choke for 48V plate-net converters
● DC-DC converter
● Differential mode choke in the onboard charger input filter
● Storage and output chokes in high current and PoL power supplies

Specifications

● Rated inductance range: 3.2μH to 10μH
● Inductance tolerance: ±12%
● Resonant frequency > 2MHz
● Low DC resistance range: 0.85mΩ to 1.2mΩ
● High saturation current range: 32A to 83A
● Dimensions: 33mm x 33mm x 15mm
● Operating temperature range: -40°C to 150°C

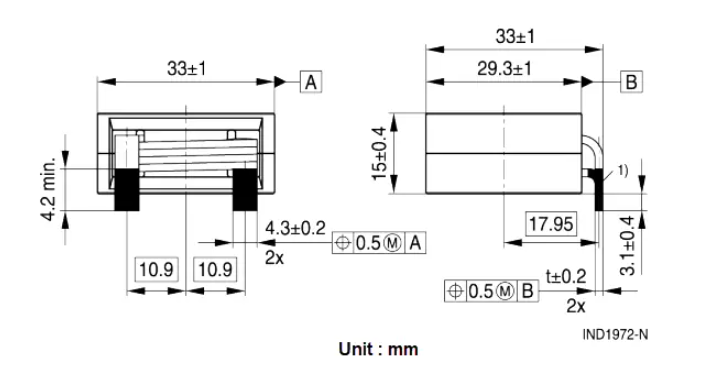

Dimensional drawing
