SAM9975
SAM9975
Favorite Products
SAM9975
SAM9975
Samtec Inc.

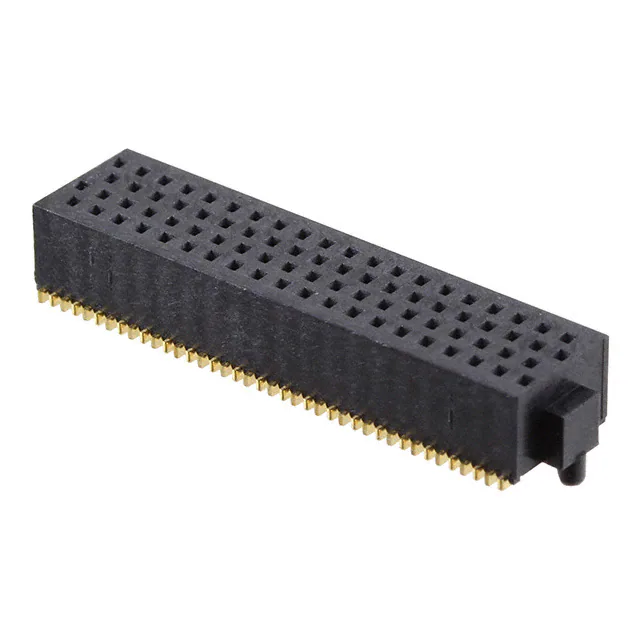

CONN RCPT 80POS 0.05 GOLD SMD



3,013
3,013 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Contact Type
Forked
Mfr
Samtec Inc.
Current Rating (Amps)
2.4A per Contact
Contact Shape
Square
Style
Board to Board
Pitch - Mating
0.050" (1.27mm)
Contact Finish - Mating
Gold
Contact Finish Thickness - Post
3.00µin (0.076µm)
Connector Type
Receptacle
Number of Positions Loaded
All
Number of Rows
4
Contact Length - Post
-
Operating Temperature
-55°C ~ 125°C
Mated Stacking Heights
-
Voltage Rating
-
Mounting Type
Surface Mount
Termination
Solder
Insulation Height
0.160" (4.06mm)
Applications
-
Package
Tube
Contact Finish - Post
Gold
Insulation Material
Liquid Crystal Polymer (LCP)
Series
FOURRAY™ SOLC
Product Status
Active
Insulation Color
Black
Material Flammability Rating
UL94 V-0
Fastening Type
Push-Pull
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Features
Board Guide
Number of Positions
80
Base Product Number
SOLC-120
Row Spacing - Mating
0.050" (1.27mm)
Ingress Protection
-
Contact Material
Phosphor Bronze
