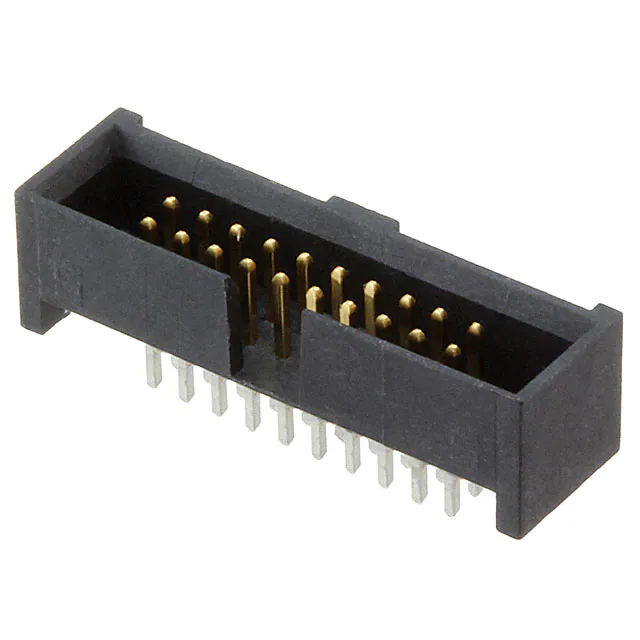

SAM9918
SAM9918
Favorite Products
SAM9918
SAM9918
Samtec Inc.
CONN HEADER VERT 20POS 1.27MM



3,082
3,082 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Row Spacing - Mating
0.050" (1.27mm)
Contact Shape
Square
Material Flammability Rating
UL94 V-0
Mated Stacking Heights
-
Product Status
Active
Contact Length - Mating
0.120" (3.05mm)
Contact Finish Thickness - Post
-
Connector Type
Header
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Contact Material
Phosphor Bronze
Fastening Type
Push-Pull
Contact Length - Post
0.075" (1.91mm)
Insulation Material
Liquid Crystal Polymer (LCP)
Pitch - Mating
0.050" (1.27mm)
Number of Positions
20
Contact Finish - Mating
Gold
Operating Temperature
-55°C ~ 125°C
Applications
-
Mfr
Samtec Inc.
Package
Tube
Number of Rows
2
Number of Positions Loaded
All
Insulation Height
0.210" (5.33mm)
Series
SHF
Style
Board to Cable/Wire
Shrouding
Shrouded - 4 Wall
Current Rating (Amps)
3A
Termination
Solder
Overall Contact Length
-
Insulation Color
Black
Mounting Type
Through Hole
Contact Finish - Post
Tin
Voltage Rating
-
Base Product Number
SHF-110
Contact Type
Male Pin
Features
Keying Slot
Ingress Protection
-
