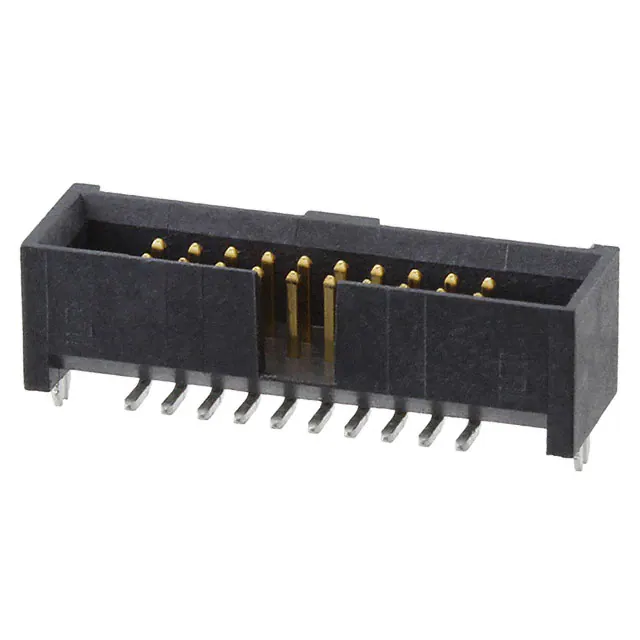

SAM9917
SAM9917
Favorite Products
SAM9917
SAM9917
Samtec Inc.
CONN HEADER SMD 20POS 1.27MM



3,005
3,005 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Termination
Solder
Ingress Protection
-
Applications
-
Number of Positions
20
Style
Board to Cable/Wire
Insulation Material
Liquid Crystal Polymer (LCP)
Current Rating (Amps)
3A
Contact Finish Thickness - Post
-
Series
SHF
Package
Tube
Product Status
Active
Row Spacing - Mating
0.050" (1.27mm)
Contact Finish - Post
Tin
Contact Material
Phosphor Bronze
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Mfr
Samtec Inc.
Connector Type
Header
Mounting Type
Surface Mount
Insulation Height
0.210" (5.33mm)
Mated Stacking Heights
-
Contact Type
Male Pin
Number of Rows
2
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Insulation Color
Black
Base Product Number
SHF-110
Pitch - Mating
0.050" (1.27mm)
Shrouding
Shrouded - 4 Wall
Fastening Type
Push-Pull
Contact Shape
Square
Features
Board Lock, Keying Slot
Number of Positions Loaded
All
Contact Length - Post
-
Overall Contact Length
-
Contact Length - Mating
0.120" (3.05mm)
Material Flammability Rating
UL94 V-0
Voltage Rating
-
