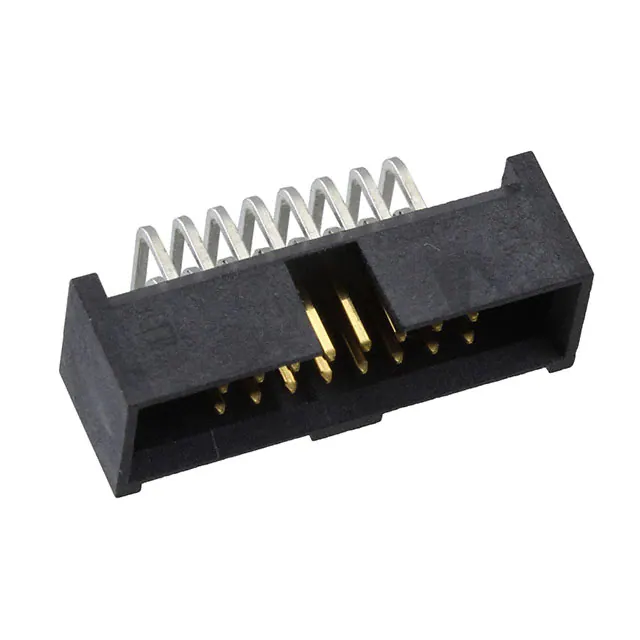

SAM9913
SAM9913
Favorite Products
SAM9913
SAM9913
Samtec Inc.
CONN HEADER R/A 16POS 1.27MM



3,013
3,013 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Operating Temperature
-55°C ~ 125°C
Contact Length - Mating
0.120" (3.05mm)
Pitch - Mating
0.050" (1.27mm)
Number of Rows
2
Overall Contact Length
-
Ingress Protection
-
Row Spacing - Mating
0.050" (1.27mm)
Voltage Rating
-
Contact Finish Thickness - Post
-
Contact Shape
Square
Mfr
Samtec Inc.
Connector Type
Header
Contact Length - Post
0.085" (2.16mm)
Contact Finish - Post
Tin
Insulation Material
Liquid Crystal Polymer (LCP)
Series
SHF
Package
Tube
Style
Board to Cable/Wire
Contact Finish - Mating
Gold
Current Rating (Amps)
3A
Mated Stacking Heights
-
Product Status
Active
Shrouding
Shrouded - 4 Wall
Contact Finish Thickness - Mating
10.0µin (0.25µm)
SHF-108
Contact Type
Male Pin
Mounting Type
Through Hole, Right Angle
Features
Keying Slot
Material Flammability Rating
UL94 V-0
Insulation Color
Black
Applications
-
Number of Positions
16
Number of Positions Loaded
All
Termination
Solder
Fastening Type
Push-Pull
Insulation Height
0.220" (5.60mm)
Contact Material
Phosphor Bronze
