SAM9430
SAM9430
Favorite Products
SAM9430
SAM9430
Samtec Inc.

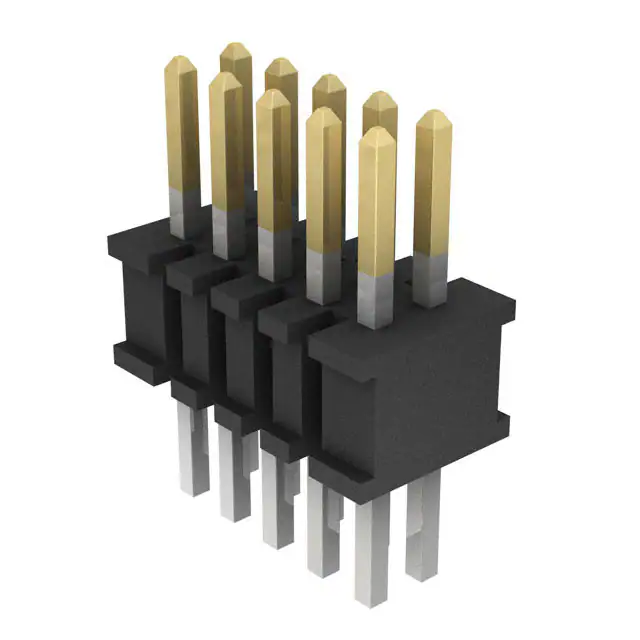

CONN HEADER VERT 10POS 1.27MM



3,044
3,044 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Row Spacing - Mating
0.050" (1.27mm)
Contact Length - Post
0.090" (2.29mm)
Product Status
Active
Fastening Type
Push-Pull
Insulation Height
0.099" (2.51mm)
Contact Material
Phosphor Bronze
Number of Positions
10
Mounting Type
Through Hole
Termination
Solder
Contact Length - Mating
0.120" (3.05mm)
Mfr
Samtec Inc.
Series
FTSH
Material Flammability Rating
UL94 V-0
Applications
-
Package
Tube
Pitch - Mating
0.050" (1.27mm)
Style
Board to Board or Cable
Shrouding
Unshrouded
Overall Contact Length
0.309" (7.86mm)
Contact Finish - Mating
Gold
Insulation Color
Black
Contact Finish - Post
Tin
Operating Temperature
-55°C ~ 125°C
Ingress Protection
-
Current Rating (Amps)
3.4A per Contact
Connector Type
Header, Cuttable
Contact Type
Male Pin
Number of Positions Loaded
All
Contact Shape
Square
Insulation Material
Liquid Crystal Polymer (LCP)
Voltage Rating
-
Contact Finish Thickness - Post
-
Number of Rows
2
Contact Finish Thickness - Mating
3.00µin (0.076µm)
Features
-
Mated Stacking Heights
-
FTSH-105
