SAM8926
SAM8926
Favorite Products

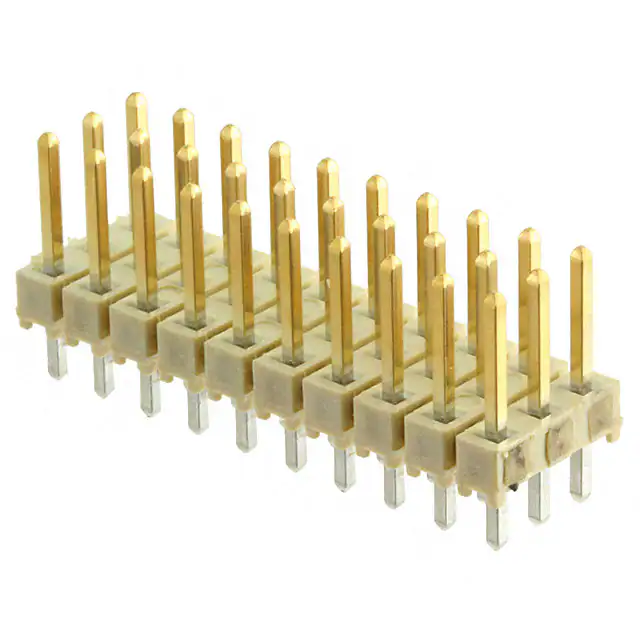

SAM8926
SAM8926
Samtec Inc.
CONN HEADER VERT 30POS 2.54MM


3,023
3,023 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Fastening Type
Push-Pull
Contact Shape
Square
Insulation Material
Liquid Crystal Polymer (LCP)
Applications
-
Number of Positions
30
Number of Positions Loaded
All
Shrouding
Unshrouded
Features
-
Mated Stacking Heights
-
Row Spacing - Mating
0.100" (2.54mm)
Insulation Color
Natural
Pitch - Mating
0.100" (2.54mm)
Mounting Type
Through Hole
Insulation Height
0.100" (2.54mm)
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Series
HTSW
Contact Length - Mating
0.230" (5.84mm)
Style
Board to Board or Cable
Termination
Solder
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Voltage Rating
-
Base Product Number
HTSW-110
Mfr
Samtec Inc.
Package
Bulk
Contact Length - Post
0.100" (2.54mm)
Contact Type
Male Pin
Contact Material
Phosphor Bronze
Ingress Protection
-
Current Rating (Amps)
Varies by Wire Gauge
Connector Type
Header
Number of Rows
3
Product Status
Active
Overall Contact Length
0.430" (10.92mm)
Contact Finish - Post
Tin
Operating Temperature
-55°C ~ 125°C
