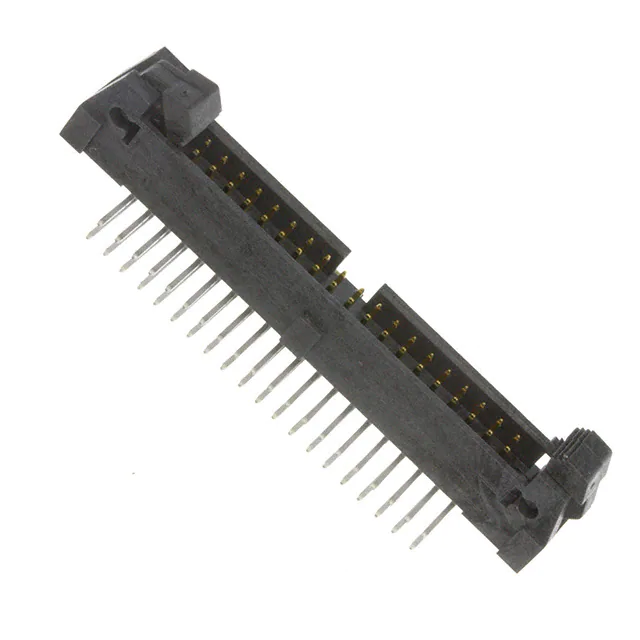

SAM8561
SAM8561
SAM8561
Favorite Products
SAM8561
SAM8561
Samtec Inc.
CONN HEADER R/A 40POS 2MM


10,019
10,019 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Mounting Type
Through Hole, Right Angle
Row Spacing - Mating
0.079" (2.00mm)
Base Product Number
EHT-120
Voltage Rating
-
Insulation Height
0.300" (7.62mm)
Contact Finish Thickness - Post
-
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Contact Material
Phosphor Bronze
Applications
-
Series
EHT
Number of Rows
2
Fastening Type
Latch Lock/Eject Hooks
Ingress Protection
-
Product Status
Active
Number of Positions
40
Termination
Solder
Contact Type
Male Pin
Number of Positions Loaded
All
Style
Board to Cable/Wire
Overall Contact Length
-
Contact Shape
Square
Contact Finish - Post
Tin
Insulation Material
Liquid Crystal Polymer (LCP)
Features
Keying Slot
Insulation Color
Black
Mated Stacking Heights
-
Shrouding
Shrouded - 4 Wall
Contact Length - Mating
0.120" (3.05mm)
Contact Length - Post
0.120" (3.05mm)
Current Rating (Amps)
3A
Package
Tube
Connector Type
Header
Pitch - Mating
0.079" (2.00mm)
Material Flammability Rating
UL94 V-0
Mfr
Samtec Inc.
Operating Temperature
-55°C ~ 125°C
