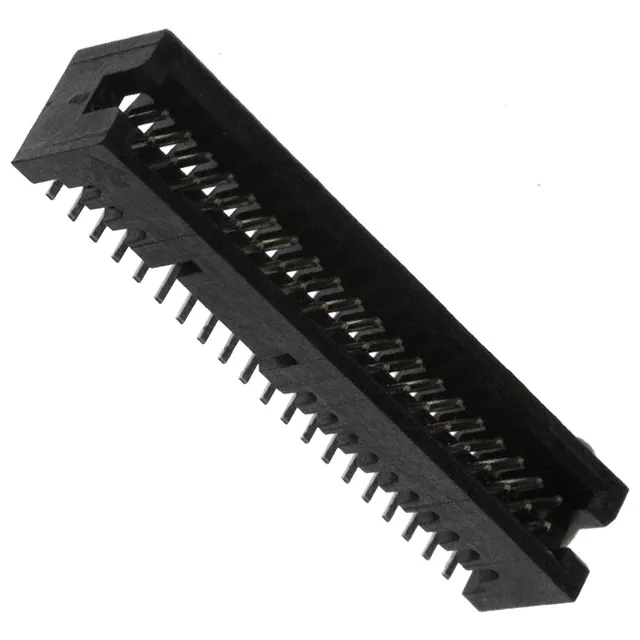

SAM8267
SAM8267
Favorite Products
SAM8267
SAM8267
Samtec Inc.
CONN HEADER SMD 40POS 1.27MM
3,057
3,057 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Connector Type
Header
Shrouding
Shrouded - 4 Wall
Insulation Material
Liquid Crystal Polymer (LCP)
Insulation Height
0.220" (5.60mm)
Applications
-
Product Status
Active
Overall Contact Length
-
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Operating Temperature
-55°C ~ 125°C
Ingress Protection
-
Voltage Rating
-
Base Product Number
TFML-120
Style
Board to Board or Cable
Contact Material
Phosphor Bronze
Features
-
Insulation Color
Black
Mfr
Samtec Inc.
Contact Finish - Mating
Gold
Contact Finish - Post
Tin
Contact Length - Mating
0.134" (3.39mm)
Contact Finish Thickness - Post
-
Number of Rows
2
Termination
Solder
Current Rating (Amps)
-
Package
Tube
Contact Type
Male Pin
Pitch - Mating
0.050" (1.27mm)
Number of Positions
40
Number of Positions Loaded
All
Contact Length - Post
-
Series
Tiger Eye™ TFML
Material Flammability Rating
UL94 V-0
Row Spacing - Mating
0.050" (1.27mm)
Contact Shape
Square
Mounting Type
Surface Mount
Fastening Type
Friction Lock
Mated Stacking Heights
-
