SAM15938
SAM15938
Favorite Products
SAM15938
SAM15938
Samtec Inc.

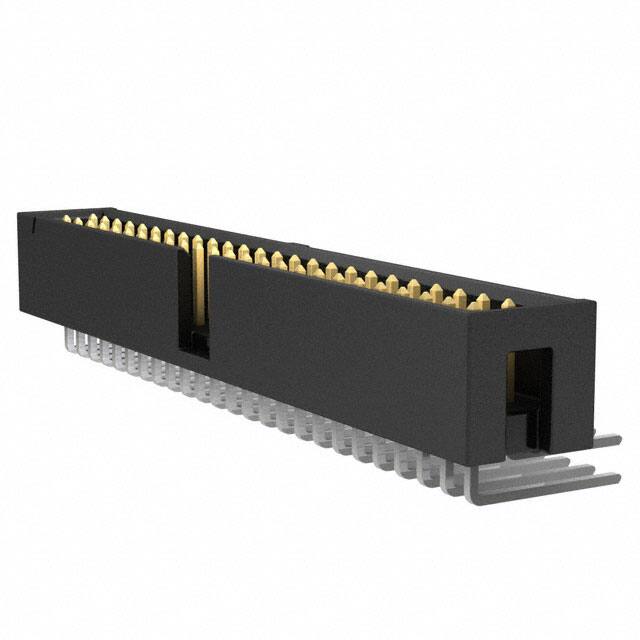

CONN HEADER R/A 50POS 2.54MM


10,070
10,070 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Package
Tube
Contact Finish - Post
Tin
Style
Board to Cable/Wire
Base Product Number
TST-125
Voltage Rating
-
Number of Positions
50
Number of Rows
2
Termination
Solder
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Features
Keying Slot
Contact Type
Male Pin
Number of Positions Loaded
All
Contact Finish - Mating
Gold
Contact Finish Thickness - Post
-
Applications
-
Contact Length - Post
0.130" (3.30mm)
Overall Contact Length
-
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature
-55°C ~ 125°C
Series
Flex Stack, TST
Shrouding
Shrouded - 4 Wall
Contact Length - Mating
0.250" (6.35mm)
Insulation Color
Black
Pitch - Mating
0.100" (2.54mm)
Current Rating (Amps)
3.4A per Contact
Connector Type
Header
Mounting Type
Through Hole, Right Angle
Mated Stacking Heights
-
Product Status
Active
Insulation Height
0.365" (9.27mm)
Contact Shape
Square
Contact Material
Phosphor Bronze
Ingress Protection
-
Mfr
Samtec Inc.
Row Spacing - Mating
0.100" (2.54mm)
Fastening Type
Push-Pull
Material Flammability Rating
UL94 V-0
