SAM15694
SAM15694
Favorite Products
SAM15694
SAM15694
Samtec Inc.

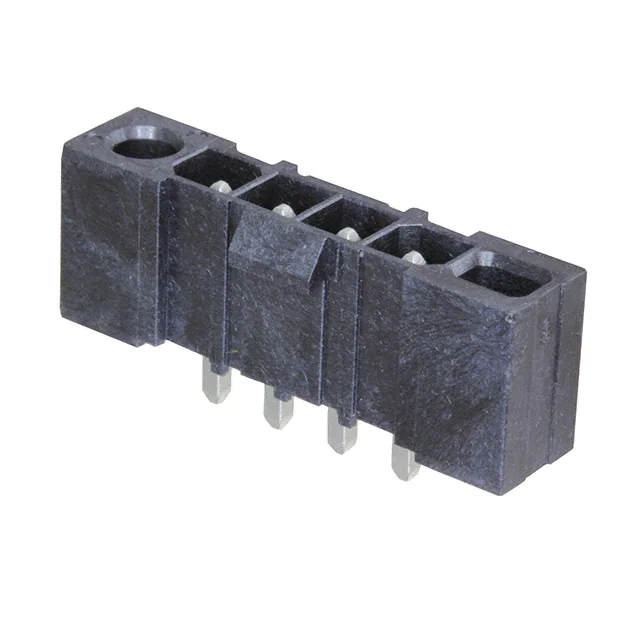

CONN HEADER VERT 4POS 4.20MM
10,099
10,099 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Material Flammability Rating
UL94 V-0
Mated Stacking Heights
-
Fastening Type
Locking Ramp
Row Spacing - Mating
-
Contact Type
Male Pin
Number of Rows
1
Mounting Type
Through Hole
Base Product Number
IPBT-104
Number of Positions
4
Number of Positions Loaded
All
Shrouding
Shrouded - 4 Wall
Contact Finish - Mating
Tin
Features
Mating Flange
Contact Finish Thickness - Post
-
Applications
-
Mfr
Samtec Inc.
Pitch - Mating
0.165" (4.20mm)
Voltage Rating
400VAC, 565VDC
Series
Power Mate® IPBT
Contact Material
Copper Alloy
Package
Tube
Contact Length - Post
0.130" (3.30mm)
Contact Finish - Post
Tin
Operating Temperature
-55°C ~ 105°C
Connector Type
Header
Termination
Solder
Insulation Height
0.380" (9.65mm)
Contact Finish Thickness - Mating
-
Insulation Color
Black
Current Rating (Amps)
-
Contact Length - Mating
0.260" (6.60mm)
Overall Contact Length
0.510" (12.95mm)
Contact Shape
Square
Insulation Material
Liquid Crystal Polymer (LCP)
Product Status
Active
Style
Board to Board or Cable
Ingress Protection
-
