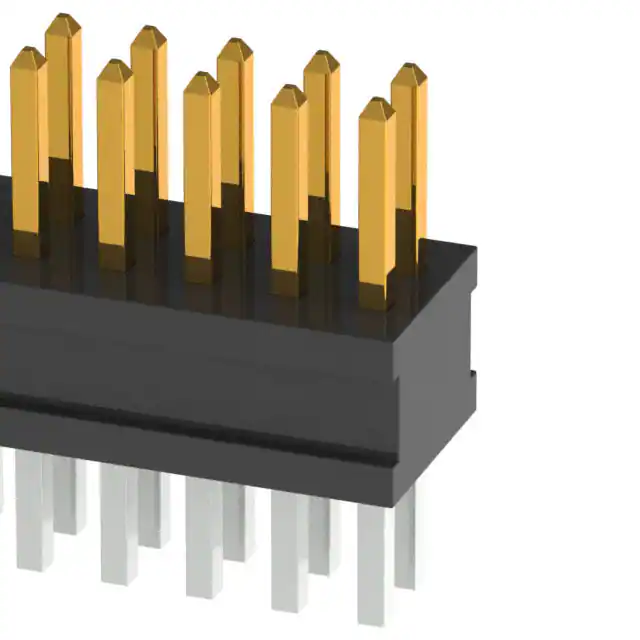

SAM15642
SAM15642
Favorite Products
SAM15642
SAM15642
Samtec Inc.
CONN HEADER VERT 12POS 1.27MM
3,083
3,083 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Package
Tube
Fastening Type
Push-Pull
Row Spacing - Mating
0.050" (1.27mm)
Mounting Type
Through Hole
Contact Length - Mating
0.120" (3.05mm)
Applications
-
Shrouding
Unshrouded
Contact Length - Post
0.090" (2.29mm)
Contact Finish - Post
Tin
Ingress Protection
-
Number of Positions
12
Number of Rows
2
Termination
Solder
Contact Finish - Mating
Gold
Contact Material
Phosphor Bronze
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
3.4A per Contact
Base Product Number
FTSH-106
Contact Type
Male Pin
Features
Keying Shroud
Material Flammability Rating
UL94 V-0
Mfr
Samtec Inc.
Connector Type
Header, Cuttable
Contact Shape
Square
Insulation Material
Liquid Crystal Polymer (LCP)
Insulation Color
Black
Voltage Rating
-
Product Status
Active
Style
Board to Board or Cable
Overall Contact Length
0.309" (7.86mm)
Insulation Height
0.099" (2.51mm)
Contact Finish Thickness - Mating
3.00µin (0.076µm)
Series
FTSH
Pitch - Mating
0.050" (1.27mm)
Number of Positions Loaded
All
Contact Finish Thickness - Post
-
Mated Stacking Heights
-
