SAM13035
SAM13035
Favorite Products
SAM13035
SAM13035
Samtec Inc.

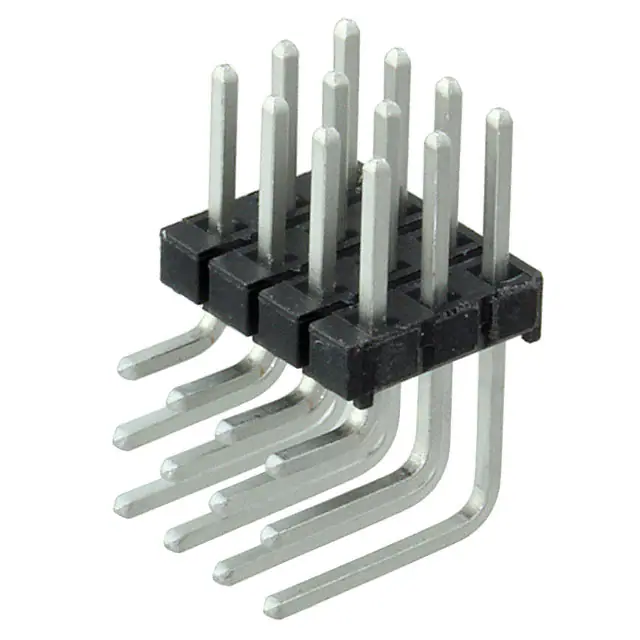

CONN HEADER R/A 12POS 2.54MM
3,066
3,066 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Row Spacing - Mating
0.100" (2.54mm)
Fastening Type
Push-Pull
Insulation Material
Polybutylene Terephthalate (PBT)
Contact Finish Thickness - Post
-
Product Status
Active
Contact Type
Male Pin
Insulation Height
0.320" (8.13mm)
Series
TSW
Base Product Number
TSW-104
Pitch - Mating
0.100" (2.54mm)
Shrouding
Unshrouded
Number of Rows
3
Contact Length - Post
0.090" (2.29mm)
Overall Contact Length
-
Contact Finish - Mating
Tin
Contact Finish Thickness - Mating
-
Contact Finish - Post
Tin
Operating Temperature
-55°C ~ 105°C
Connector Type
Header
Style
Board to Board or Cable
Mounting Type
Through Hole, Right Angle
Contact Material
Phosphor Bronze
Features
-
Ingress Protection
-
Material Flammability Rating
UL94 V-0
Insulation Color
Black
Applications
-
Package
Bulk
Number of Positions Loaded
All
Termination
Solder
Mated Stacking Heights
-
Number of Positions
12
Mfr
Samtec Inc.
Contact Length - Mating
0.230" (5.84mm)
Contact Shape
Square
Voltage Rating
-
Current Rating (Amps)
-
