SAM12959
SAM12959
Favorite Products
SAM12959
SAM12959
Samtec Inc.

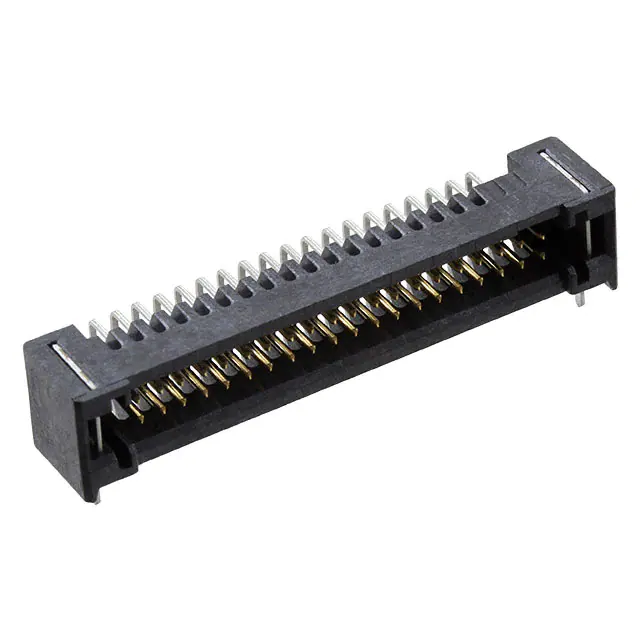

CONN HEADER R/A 40POS 1.27MM
3,035
3,035 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Features
Solder Retention
Series
Tiger Eye™ TFM
Style
Board to Board or Cable
Mfr
Samtec Inc.
Operating Temperature
-55°C ~ 125°C
Shrouding
Shrouded - 4 Wall
Product Status
Active
Termination
Solder
Contact Finish - Post
Tin
Material Flammability Rating
UL94 V-0
Insulation Color
Black
Mated Stacking Heights
-
Number of Positions
40
Contact Finish - Mating
Gold
Current Rating (Amps)
2.9A per Contact
Voltage Rating
275VAC
Applications
-
Contact Type
Male Pin
Pitch - Mating
0.050" (1.27mm)
Insulation Material
Liquid Crystal Polymer (LCP)
Connector Type
Header, Elevated
Row Spacing - Mating
0.050" (1.27mm)
Mounting Type
Through Hole, Right Angle
Ingress Protection
-
Number of Positions Loaded
All
Contact Length - Mating
0.139" (3.53mm)
Base Product Number
TFM-120
Package
Tube
Number of Rows
2
Fastening Type
Push-Pull
Insulation Height
0.256" (6.50mm)
Contact Length - Post
0.110" (2.79mm)
Overall Contact Length
-
Contact Shape
Square
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Contact Material
Phosphor Bronze
