SAM12111
SAM12111
Favorite Products
SAM12111
SAM12111
Samtec Inc.

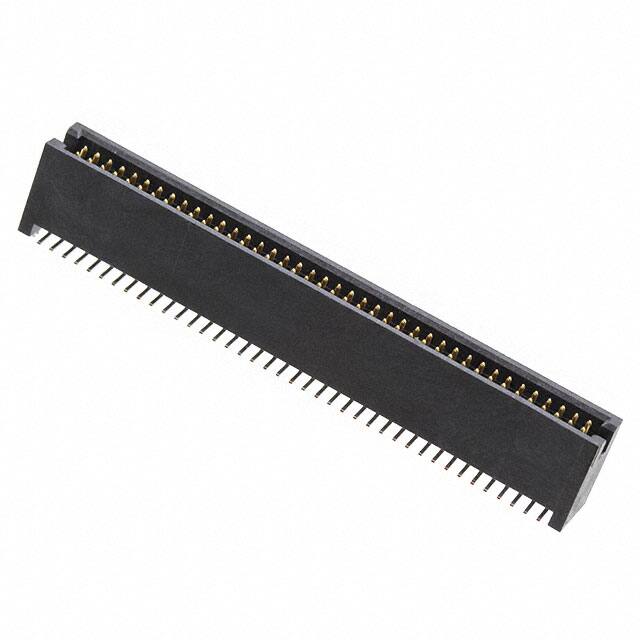

CONN HEADER SMD 80POS 1.27MM
3,034
3,034 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Current Rating (Amps)
2.9A per Contact
Material Flammability Rating
UL94 V-0
Fastening Type
Push-Pull
Mfr
Samtec Inc.
Number of Positions Loaded
All
Termination
Solder
Contact Material
Phosphor Bronze
Insulation Material
Liquid Crystal Polymer (LCP)
Ingress Protection
-
Voltage Rating
275VAC
Contact Finish Thickness - Post
-
Connector Type
Header
Insulation Color
Black
Number of Rows
2
Mounting Type
Surface Mount
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Pitch - Mating
0.050" (1.27mm)
Contact Length - Post
-
Overall Contact Length
-
Contact Finish - Mating
Gold
Package
Tube
Product Status
Active
Contact Type
Male Pin
Contact Finish - Post
Tin
Operating Temperature
-55°C ~ 125°C
Applications
-
Contact Shape
Square
Base Product Number
TFM-140
Series
Tiger Eye™ TFM
Number of Positions
80
Row Spacing - Mating
0.050" (1.27mm)
Style
Board to Board or Cable
Shrouding
Shrouded - 4 Wall
Contact Length - Mating
0.139" (3.53mm)
Insulation Height
0.360" (9.14mm)
Features
Board Lock
Mated Stacking Heights
-
