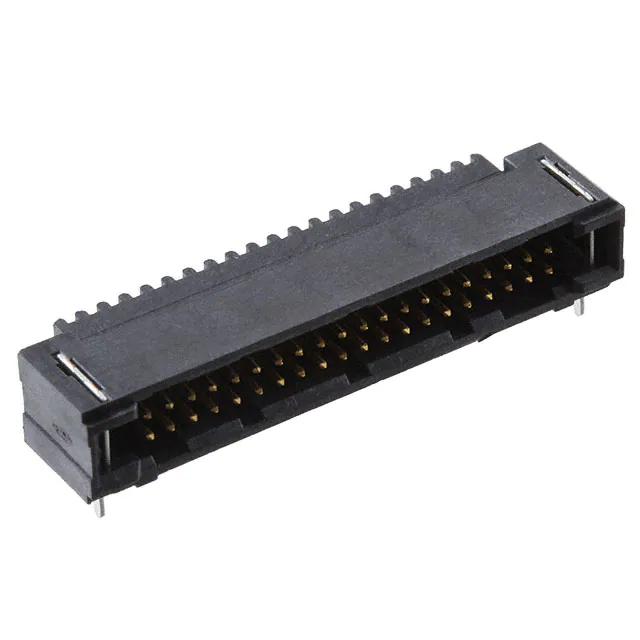

SAM12088
SAM12088
Favorite Products
SAM12088
SAM12088
Samtec Inc.
CONN HEADER SMD R/A 40POS 1.27MM
tfm.pdf

3,047
3,047 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Package
Tube
Features
-
Overall Contact Length
-
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Insulation Material
Liquid Crystal Polymer (LCP)
Product Status
Active
Mounting Type
Surface Mount, Right Angle
Termination
Solder
Fastening Type
Push-Pull
Mated Stacking Heights
-
Base Product Number
TFM-120
Mfr
Samtec Inc.
Contact Type
Male Pin
Contact Length - Post
-
Current Rating (Amps)
2.9A per Contact
Applications
-
Contact Length - Mating
0.131" (3.33mm)
Voltage Rating
275VAC
Series
Tiger Eye™ TFM
Connector Type
Header
Pitch - Mating
0.050" (1.27mm)
Number of Positions
40
Number of Rows
2
Ingress Protection
-
Material Flammability Rating
UL94 V-0
Insulation Color
Black
Contact Finish Thickness - Post
-
Insulation Height
0.225" (5.72mm)
Contact Shape
Square
Contact Finish - Mating
Gold
Operating Temperature
-55°C ~ 125°C
Row Spacing - Mating
0.050" (1.27mm)
Style
Board to Board or Cable
Shrouding
Shrouded - 4 Wall
Number of Positions Loaded
All
Contact Finish - Post
Tin
Contact Material
Phosphor Bronze
