SAM12035
SAM12035
SAM12035
Favorite Products

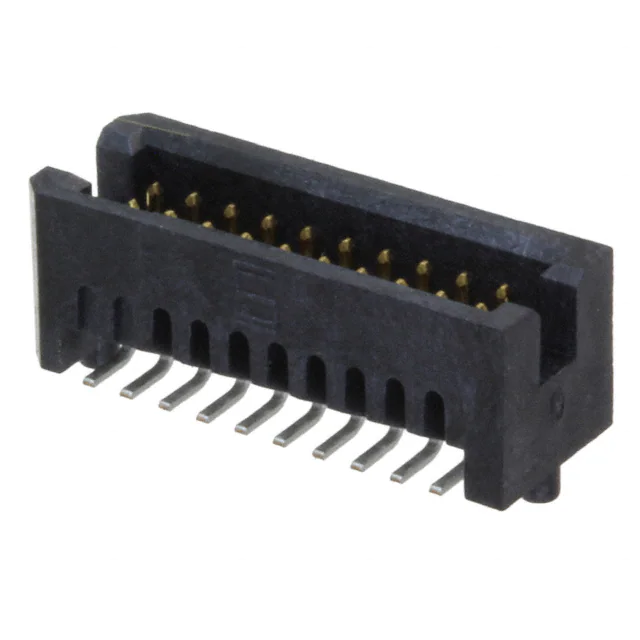

SAM12035
SAM12035
Samtec Inc.
CONN HEADER SMD 20POS 1.27MM


3,006
3,006 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Number of Rows
2
Contact Length - Post
-
Voltage Rating
275VAC
Mounting Type
Surface Mount
Contact Type
Male Pin
Insulation Height
0.226" (5.74mm)
Mfr
Samtec Inc.
Package
Tube
Pitch - Mating
0.050" (1.27mm)
Shrouding
Shrouded - 4 Wall
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Insulation Material
Liquid Crystal Polymer (LCP)
Connector Type
Header
Overall Contact Length
-
Insulation Color
Black
Applications
-
Number of Positions Loaded
All
Style
Board to Board or Cable
Termination
Solder
Ingress Protection
-
Contact Finish Thickness - Post
-
Contact Material
Phosphor Bronze
Mated Stacking Heights
-
Series
Tiger Eye™ TFC
Number of Positions
20
Contact Length - Mating
0.131" (3.33mm)
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 V-0
Contact Finish - Post
Tin
Product Status
Active
Row Spacing - Mating
0.050" (1.27mm)
Features
Board Guide, Pick and Place
Fastening Type
Push-Pull
Contact Shape
Square
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
3.1A per Contact
Base Product Number
TFC-110
