SAM11978
SAM11978
Favorite Products
SAM11978
SAM11978
Samtec Inc.

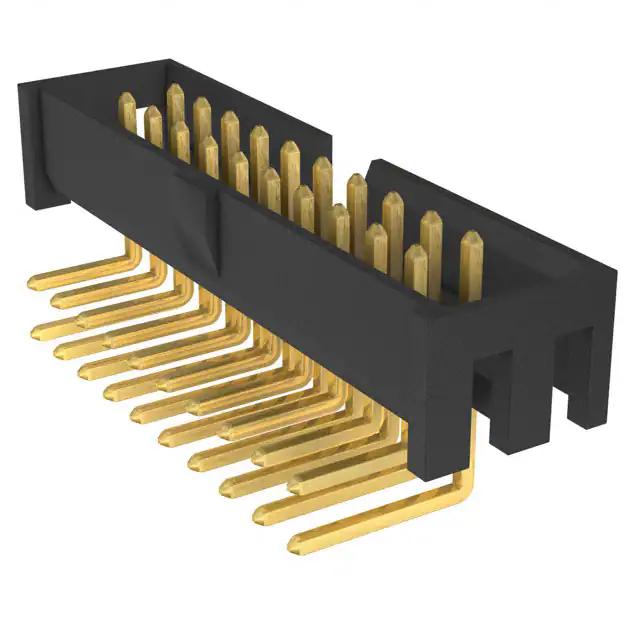

CONN HEADER R/A 20POS 2MM


841
841 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Contact Material
Phosphor Bronze
Ingress Protection
-
Connector Type
Header
Number of Rows
2
Termination
Solder
Voltage Rating
-
Applications
-
Contact Finish - Mating
Gold
Insulation Color
Black
Mated Stacking Heights
-
Product Status
Active
Pitch - Mating
0.079" (2.00mm)
Number of Positions
20
Contact Shape
Square
Shrouding
Shrouded - 4 Wall
Overall Contact Length
-
Insulation Material
Liquid Crystal Polymer (LCP)
Mfr
Samtec Inc.
Contact Length - Post
0.090" (2.29mm)
Material Flammability Rating
-
Current Rating (Amps)
3A
Number of Positions Loaded
All
Fastening Type
Push-Pull
Contact Finish - Post
Gold
Row Spacing - Mating
0.079" (2.00mm)
Style
Board to Cable/Wire
Mounting Type
Through Hole, Right Angle
Contact Length - Mating
0.120" (3.05mm)
Contact Finish Thickness - Mating
20.0µin (0.51µm)
Operating Temperature
-55°C ~ 125°C
Series
Flex Stack, STMM
Contact Type
Male Pin
Insulation Height
0.236" (6.00mm)
Contact Finish Thickness - Post
3.00µin (0.076µm)
Base Product Number
STMM-110
Package
Tube
Features
Keying Slot
