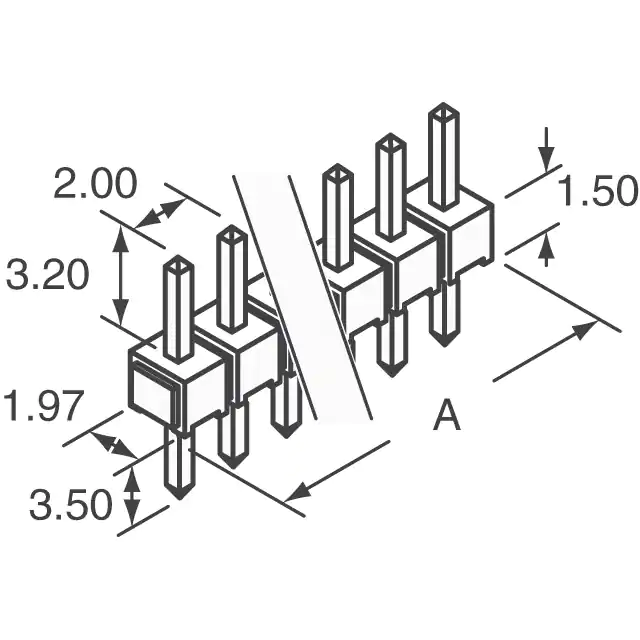

SAM1174-07
SAM1174-07
SAM1174-07
Favorite Products
SAM1174-07
SAM1174-07
Samtec Inc.
CONN HEADER VERT 7POS 2MM




10,070
10,070 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Contact Finish Thickness - Post
3.00µin (0.076µm)
Row Spacing - Mating
-
Contact Length - Mating
0.126" (3.20mm)
Mounting Type
Through Hole
Contact Finish Thickness - Mating
20.0µin (0.51µm)
Material Flammability Rating
-
Shrouding
Unshrouded
Voltage Rating
-
Package
Bulk
Connector Type
Header
Insulation Height
0.059" (1.50mm)
Operating Temperature
-55°C ~ 125°C
Series
TMM
Pitch - Mating
0.079" (2.00mm)
Style
Board to Board or Cable
Termination
Solder
Contact Shape
Square
Contact Finish - Mating
Gold
Contact Finish - Post
Gold
Contact Material
Phosphor Bronze
Applications
-
Base Product Number
TMM-107
Mfr
Samtec Inc.
Product Status
Active
Number of Positions
7
Number of Positions Loaded
All
Fastening Type
Push-Pull
Contact Length - Post
0.138" (3.50mm)
Overall Contact Length
0.323" (8.20mm)
Features
-
Ingress Protection
-
Insulation Color
Black
Mated Stacking Heights
-
Contact Type
Male Pin
Number of Rows
1
Insulation Material
Liquid Crystal Polymer (LCP)
Current Rating (Amps)
3.2A per Contact
