SAM1162-20
SAM1162-20
SAM1162-20
SAM1162-20
Favorite Products
SAM1162-20
SAM1162-20
Samtec Inc.

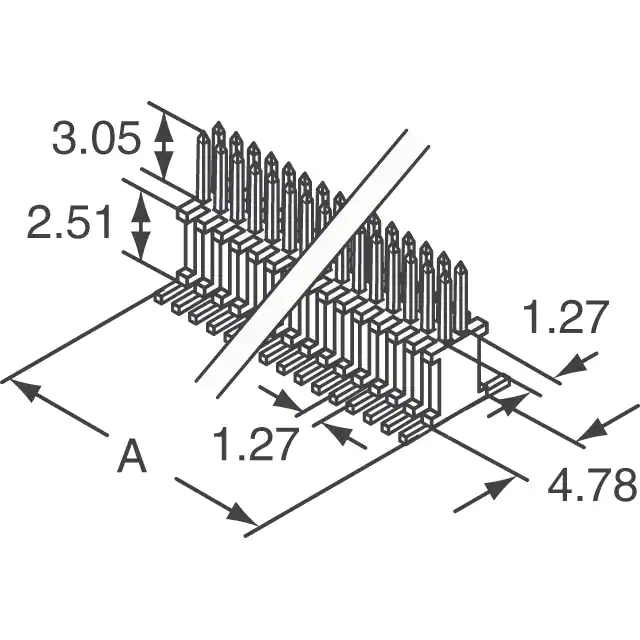

CONN HEADER SMD R/A 40POS 1.27MM



3,076
3,076 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Insulation Color
Black
Number of Positions Loaded
All
Contact Length - Mating
0.120" (3.05mm)
Contact Length - Post
0.090" (2.29mm)
Ingress Protection
-
Series
FTSH
Termination
Solder
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Contact Material
Phosphor Bronze
Pitch - Mating
0.050" (1.27mm)
Number of Rows
2
Base Product Number
FTSH-120
Connector Type
Header, Cuttable
Row Spacing - Mating
0.050" (1.27mm)
Features
-
Material Flammability Rating
UL94 V-0
Package
Bulk
Mounting Type
Surface Mount, Right Angle; Through Hole
Number of Positions
40
Style
Board to Board or Cable
Contact Finish Thickness - Post
-
Applications
-
Mfr
Samtec Inc.
Shrouding
Unshrouded
Insulation Height
0.135" (3.43mm)
Insulation Material
Liquid Crystal Polymer (LCP)
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Finish - Post
Tin
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
3.4A per Contact
Voltage Rating
-
Product Status
Active
Contact Type
Male Pin
Fastening Type
Push-Pull
Contact Shape
Square
