SAM11419
SAM11419
Favorite Products

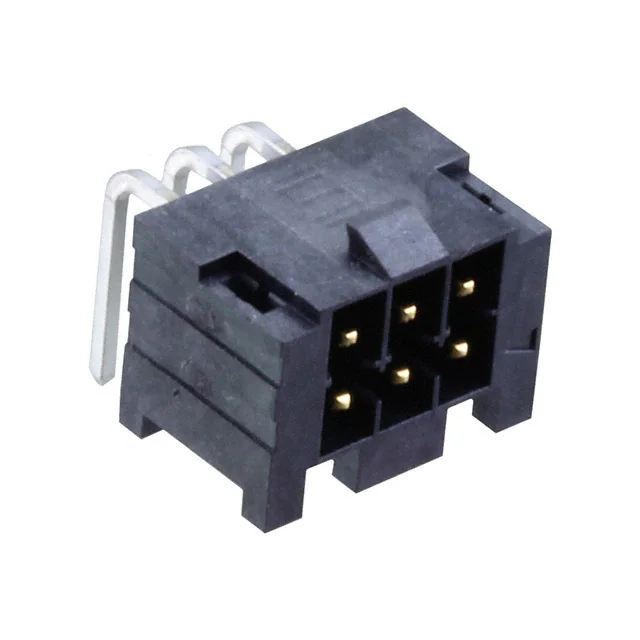

SAM11419
SAM11419
Samtec Inc.
CONN HEADER R/A 6POS 2.54MM


3,045
3,045 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Mfr
Samtec Inc.
Row Spacing - Mating
0.100" (2.54mm)
Ingress Protection
-
Applications
-
Connector Type
Header
Pitch - Mating
0.100" (2.54mm)
Style
Board to Cable/Wire
Features
-
Termination
Solder
Material Flammability Rating
UL94 V-0
Series
Mini Mate® IPL1
Number of Positions
6
Mated Stacking Heights
-
Shrouding
Shrouded - 4 Wall
Contact Length - Mating
0.215" (5.46mm)
Insulation Material
Liquid Crystal Polymer (LCP)
Operating Temperature
-55°C ~ 125°C
Package
Tube
Contact Finish - Post
Tin
Contact Material
Phosphor Bronze
Insulation Color
Natural
Current Rating (Amps)
-
Mounting Type
Through Hole, Right Angle
Fastening Type
Locking Ramp
Contact Length - Post
0.085" (2.16mm)
Insulation Height
0.325" (8.25mm)
Contact Finish - Mating
Gold
Number of Rows
2
Number of Positions Loaded
All
Overall Contact Length
-
Contact Shape
Square
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Base Product Number
IPL1-103
Product Status
Active
Contact Type
Male Pin
Contact Finish Thickness - Post
-
Voltage Rating
675VAC, 954VDC
