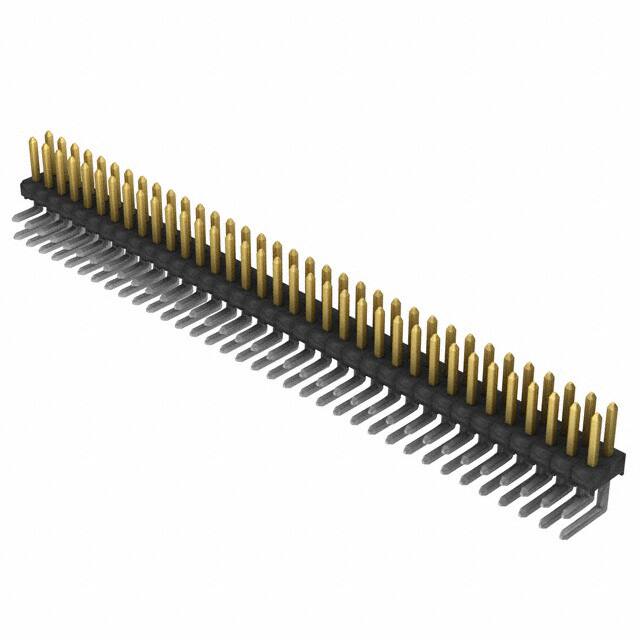

SAM1045-35
SAM1045-35
SAM1045-35
SAM1045-35
Favorite Products
SAM1045-35
SAM1045-35
Samtec Inc.
CONN HEADER R/A 70POS 2.54MM
851
851 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Material Flammability Rating
UL94 V-0
Number of Positions Loaded
All
Mated Stacking Heights
-
Mfr
Samtec Inc.
Contact Type
Male Pin
Termination
Solder
Voltage Rating
-
Mounting Type
Through Hole, Right Angle
Contact Finish - Post
Tin
Insulation Color
Black
Contact Length - Mating
0.230" (5.84mm)
Overall Contact Length
-
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Base Product Number
TSW-135
Series
TSW
Package
Bulk
Contact Shape
Square
Insulation Material
Polybutylene Terephthalate (PBT)
Contact Finish Thickness - Post
-
Number of Positions
70
Shrouding
Unshrouded
Features
-
Pitch - Mating
0.100" (2.54mm)
Contact Finish - Mating
Gold
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
-
Applications
-
Product Status
Active
Row Spacing - Mating
0.100" (2.54mm)
Style
Board to Board or Cable
Insulation Height
0.219" (5.56mm)
Fastening Type
Push-Pull
Contact Length - Post
0.090" (2.29mm)
Ingress Protection
-
Connector Type
Header
Number of Rows
2
Contact Material
Phosphor Bronze
