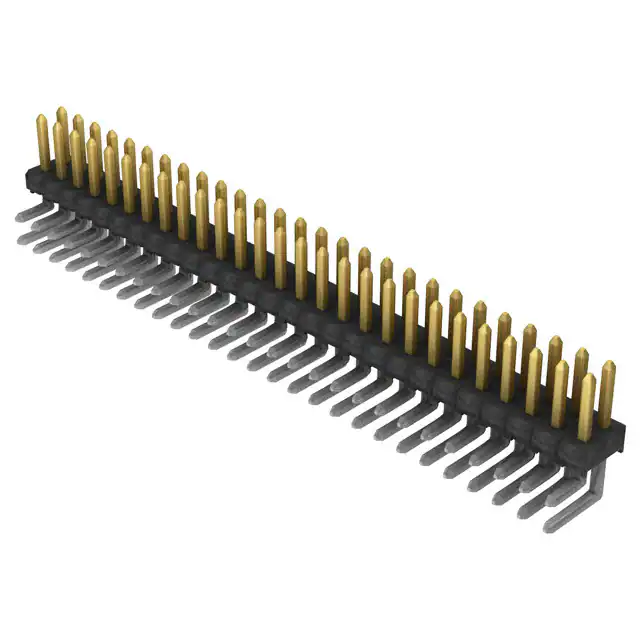

SAM1045-27
SAM1045-27
SAM1045-27
SAM1045-27
Favorite Products
SAM1045-27
SAM1045-27
Samtec Inc.
CONN HEADER R/A 54POS 2.54MM
10,090
10,090 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Number of Rows
2
Connector Type
Header
Fastening Type
Push-Pull
Mfr
Samtec Inc.
Pitch - Mating
0.100" (2.54mm)
Operating Temperature
-55°C ~ 125°C
Number of Positions
54
Material Flammability Rating
UL94 V-0
Mounting Type
Through Hole, Right Angle
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Insulation Material
Polybutylene Terephthalate (PBT)
Features
-
Current Rating (Amps)
-
Contact Finish Thickness - Post
-
Package
Bulk
Termination
Solder
Contact Length - Mating
0.230" (5.84mm)
Contact Finish - Post
Tin
Contact Material
Phosphor Bronze
Series
TSW
Row Spacing - Mating
0.100" (2.54mm)
Contact Length - Post
0.090" (2.29mm)
Overall Contact Length
-
Voltage Rating
-
Insulation Height
0.219" (5.56mm)
Insulation Color
Black
Contact Type
Male Pin
Style
Board to Board or Cable
Contact Shape
Square
Contact Finish - Mating
Gold
Ingress Protection
-
Product Status
Active
Applications
-
Base Product Number
TSW-127
Number of Positions Loaded
All
Shrouding
Unshrouded
Mated Stacking Heights
-
