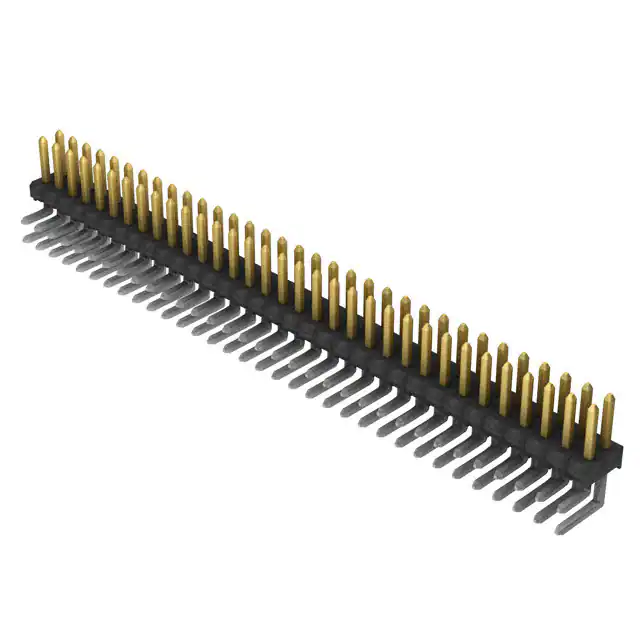

SAM1041-33
SAM1041-33
SAM1041-33
SAM1041-33
Favorite Products
SAM1041-33
SAM1041-33
Samtec Inc.
CONN HEADER R/A 66POS 2.54MM
3,002
3,002 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Number of Positions Loaded
All
Pitch - Mating
0.100" (2.54mm)
Material Flammability Rating
UL94 V-0
Overall Contact Length
-
Mated Stacking Heights
-
Package
Bulk
Contact Finish - Post
Tin
Contact Material
Phosphor Bronze
Product Status
Active
Voltage Rating
-
Termination
Solder
Number of Rows
2
Style
Board to Board or Cable
Fastening Type
Push-Pull
Contact Finish - Mating
Gold
Operating Temperature
-55°C ~ 125°C
Insulation Color
Black
Applications
-
Row Spacing - Mating
0.100" (2.54mm)
Contact Length - Mating
0.230" (5.84mm)
Contact Length - Post
0.090" (2.29mm)
Insulation Height
0.219" (5.56mm)
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Contact Finish Thickness - Post
-
Mfr
Samtec Inc.
Connector Type
Header
Current Rating (Amps)
-
Base Product Number
TSW-133
Ingress Protection
-
Number of Positions
66
Shrouding
Unshrouded
Insulation Material
Polybutylene Terephthalate (PBT)
Series
TSW
Contact Type
Male Pin
Mounting Type
Through Hole, Right Angle
Contact Shape
Square
Features
-
