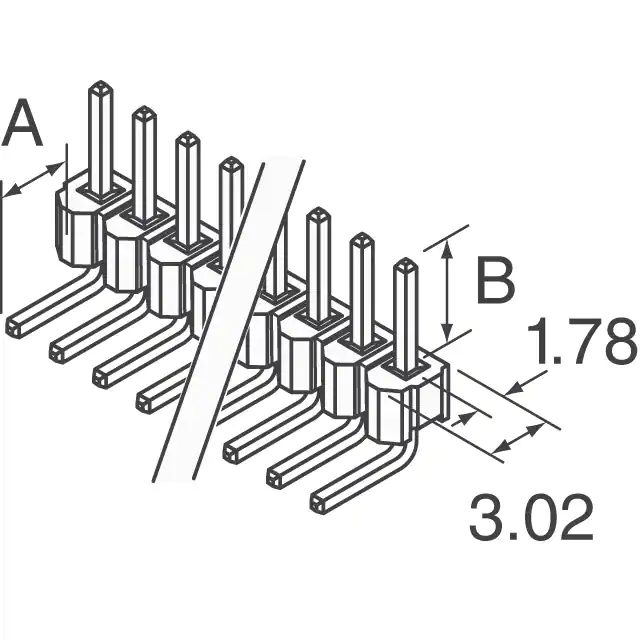

SAM1039-24
SAM1039-24
SAM1039-24
Favorite Products
SAM1039-24
SAM1039-24
Samtec Inc.
CONN HEADER R/A 24POS 2.54MM
3,046
3,046 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Features
-
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Style
Board to Board or Cable
Mfr
Samtec Inc.
Number of Positions
24
Number of Rows
1
Contact Shape
Square
Base Product Number
TSW-124
Series
TSW
Product Status
Active
Termination
Solder
Overall Contact Length
-
Insulation Material
Polybutylene Terephthalate (PBT)
Connector Type
Header
Contact Length - Mating
0.230" (5.84mm)
Current Rating (Amps)
-
Package
Bulk
Pitch - Mating
0.100" (2.54mm)
Number of Positions Loaded
All
Operating Temperature
-55°C ~ 125°C
Ingress Protection
-
Contact Finish Thickness - Post
3.00µin (0.076µm)
Insulation Height
0.119" (3.02mm)
Contact Finish - Post
Gold
Mated Stacking Heights
-
Applications
-
Fastening Type
Push-Pull
Contact Length - Post
0.090" (2.29mm)
Insulation Color
Black
Row Spacing - Mating
-
Material Flammability Rating
UL94 V-0
Voltage Rating
-
Contact Material
Phosphor Bronze
Contact Type
Male Pin
Shrouding
Unshrouded
Mounting Type
Through Hole, Right Angle
Contact Finish - Mating
Gold
