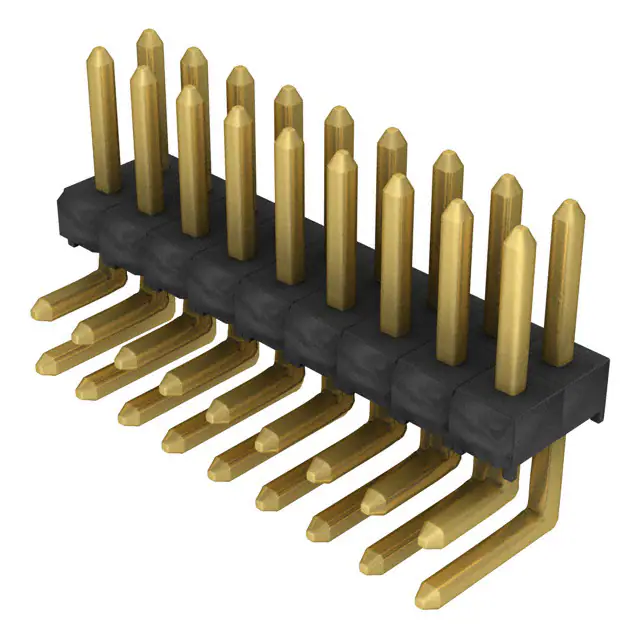

SAM1037-09
SAM1037-09
SAM1037-09
Favorite Products
SAM1037-09
SAM1037-09
Samtec Inc.
CONN HEADER R/A 18POS 2.54MM
3,052
3,052 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Style
Board to Board or Cable
Overall Contact Length
-
Material Flammability Rating
UL94 V-0
Voltage Rating
-
Number of Positions
18
Contact Shape
Square
Number of Rows
2
Fastening Type
Push-Pull
Operating Temperature
-55°C ~ 125°C
Series
TSW
Connector Type
Header
Contact Material
Phosphor Bronze
Shrouding
Unshrouded
Termination
Solder
Current Rating (Amps)
-
Insulation Height
0.219" (5.56mm)
Contact Finish - Post
Gold
Features
-
Mated Stacking Heights
-
Contact Finish Thickness - Post
3.00µin (0.076µm)
Pitch - Mating
0.100" (2.54mm)
Row Spacing - Mating
0.100" (2.54mm)
Mounting Type
Through Hole, Right Angle
Insulation Color
Black
Mfr
Samtec Inc.
Contact Type
Male Pin
Contact Finish - Mating
Gold
Insulation Material
Polybutylene Terephthalate (PBT)
Ingress Protection
-
Base Product Number
TSW-109
Package
Bulk
Product Status
Active
Number of Positions Loaded
All
Contact Length - Mating
0.230" (5.84mm)
Contact Length - Post
0.090" (2.29mm)
Applications
-
