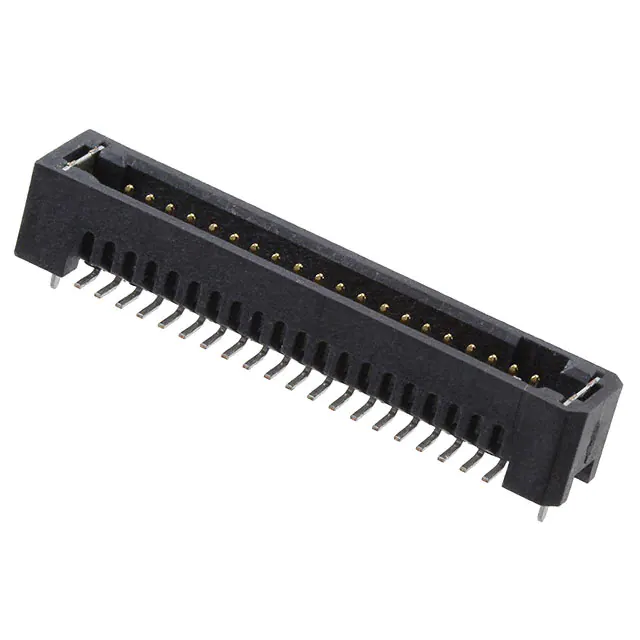

SAM10154
SAM10154
Favorite Products
SAM10154
SAM10154
Samtec Inc.
CONN HEADER SMD 40POS 1.27MM
3,037
3,037 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Voltage Rating
275VAC
Termination
Solder
Contact Shape
Square
Pitch - Mating
0.050" (1.27mm)
Style
Board to Board or Cable
Contact Length - Mating
0.131" (3.33mm)
Contact Length - Post
-
Features
Solder Retention
Material Flammability Rating
UL94 V-0
Product Status
Active
Shrouding
Shrouded - 4 Wall
Insulation Height
0.220" (5.60mm)
Insulation Material
Liquid Crystal Polymer (LCP)
Operating Temperature
-55°C ~ 125°C
Ingress Protection
-
Mfr
Samtec Inc.
Package
Tube
Row Spacing - Mating
0.050" (1.27mm)
Mounting Type
Surface Mount
Number of Positions Loaded
All
Fastening Type
Push-Pull
Overall Contact Length
-
Insulation Color
Black
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Contact Finish - Post
Tin
Base Product Number
TFM-120
Contact Material
Phosphor Bronze
Current Rating (Amps)
2.9A per Contact
Number of Rows
2
Mated Stacking Heights
-
Contact Finish - Mating
Gold
Series
Tiger Eye™ TFM
Connector Type
Header
Contact Type
Male Pin
Number of Positions
40
Contact Finish Thickness - Post
-
Applications
-
