S9496
S9496
Favorite Products
S9496
S9496

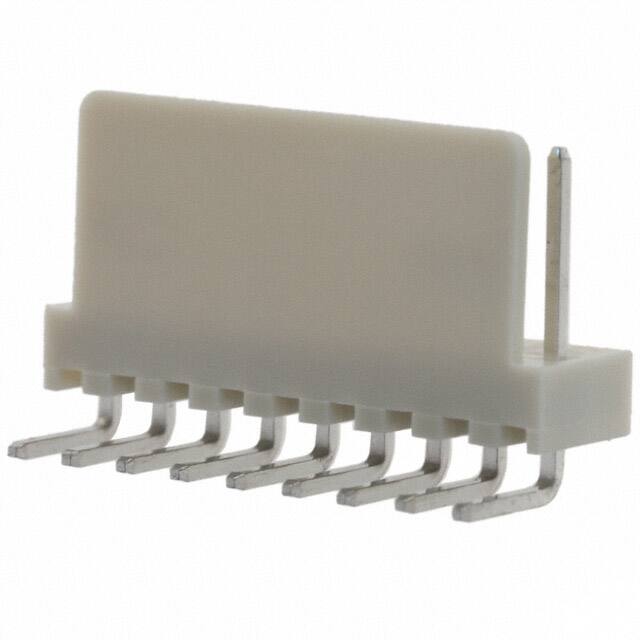

CONN HEADER R/A 9POS 2.54MM
3,043
3,043 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Fastening Type
Friction Lock
Shrouding
Shrouded - 1 Wall
Applications
-
Mfr
Sullins Connector Solutions
Package
Bulk
Insulation Material
Polyamide (PA66), Nylon 6/6
Material Flammability Rating
UL94 V-0
Number of Positions Loaded
All
Insulation Height
0.228" (5.80mm)
Operating Temperature
-25°C ~ 85°C
Pitch - Mating
0.100" (2.54mm)
Contact Finish Thickness - Post
-
Connector Type
Header
Number of Positions
9
Termination
Solder
Overall Contact Length
-
Features
-
Ingress Protection
-
Mated Stacking Heights
-
Number of Rows
1
Current Rating (Amps)
5A per Contact
Voltage Rating
250V
Base Product Number
SWR25X
Series
SWR25X
Contact Finish - Mating
Tin
Contact Finish Thickness - Mating
-
Contact Finish - Post
Tin
Contact Material
Brass
Row Spacing - Mating
-
Contact Type
Male Pin
Contact Length - Mating
0.303" (7.70mm)
Product Status
Active
Style
Board to Cable/Wire
Mounting Type
Through Hole, Right Angle
Contact Length - Post
0.134" (3.40mm)
Contact Shape
Square
Insulation Color
Beige
