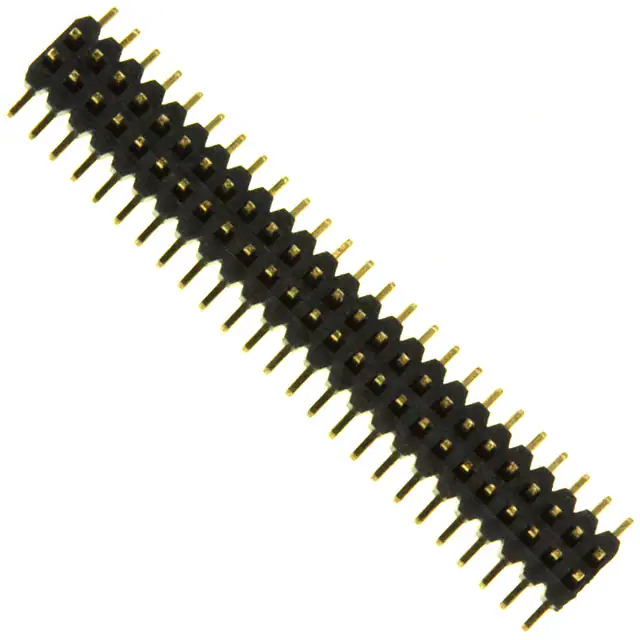

S9246
S9246
CONN HEADER SMD 50POS 1MM

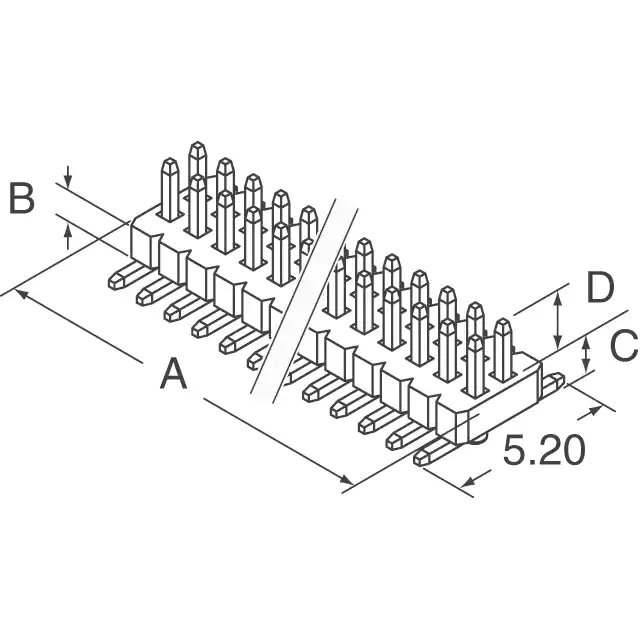

SMH151,2_Dwg.pdf
871
871 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Contact Shape
Square
Material Flammability Rating
UL94 V-0
Features
Board Guide
Voltage Rating
-
Number of Positions
50
Operating Temperature
-40°C ~ 125°C
Contact Finish Thickness - Post
10.0µin (0.25µm)
Row Spacing - Mating
0.039" (1.00mm)
Shrouding
Unshrouded
Fastening Type
Push-Pull
Ingress Protection
-
Contact Type
Male Pin
Insulation Color
Black
Current Rating (Amps)
1A
Number of Rows
2
Number of Positions Loaded
All
Package
Tube
Connector Type
Header
Contact Finish - Mating
Gold
Applications
-
Mounting Type
Surface Mount
Termination
Solder
Base Product Number
SMH151
Pitch - Mating
0.039" (1.00mm)
Style
Board to Board
Contact Length - Mating
0.065" (1.65mm)
Contact Finish - Post
Gold
Mated Stacking Heights
-
Mfr
Sullins Connector Solutions
Contact Length - Post
-
Overall Contact Length
-
Insulation Height
0.059" (1.50mm)
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Insulation Material
Liquid Crystal Polymer (LCP)
Series
SMH
Product Status
Active
Contact Material
Phosphor Bronze
