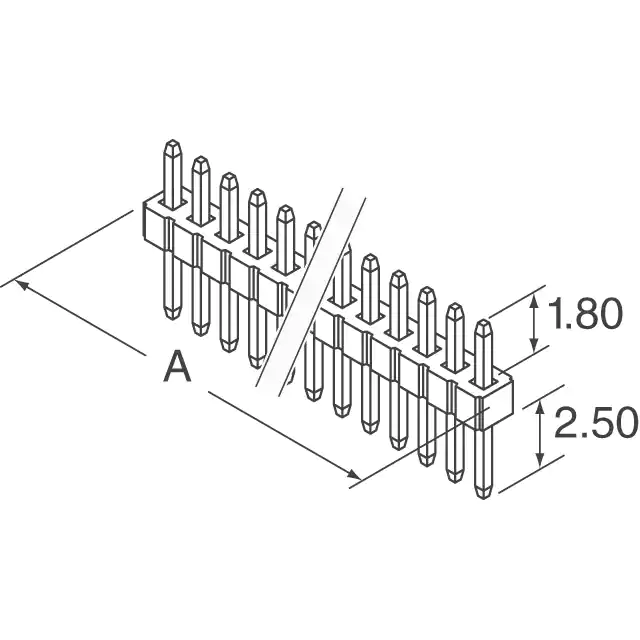

S9219
S9219
S9219
Favorite Products
S9219
S9219
CONN HEADER VERT 40POS 1MM
10,009
10,009 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Package
Bulk
Mounting Type
Through Hole
Termination
Solder
Insulation Color
Black
Contact Length - Post
0.098" (2.50mm)
Voltage Rating
-
Base Product Number
SMH100
Contact Finish Thickness - Post
10.0µin (0.25µm)
Connector Type
Header
Number of Positions Loaded
All
Shrouding
Unshrouded
Operating Temperature
-40°C ~ 125°C
Contact Type
Male Pin
Number of Positions
40
Row Spacing - Mating
-
Contact Length - Mating
0.071" (1.80mm)
Insulation Height
0.039" (1.00mm)
Contact Finish - Mating
Gold
Insulation Material
Liquid Crystal Polymer (LCP)
Ingress Protection
-
Mfr
Sullins Connector Solutions
Series
SMH
Product Status
Active
Pitch - Mating
0.039" (1.00mm)
Fastening Type
Push-Pull
Overall Contact Length
0.209" (5.30mm)
Features
-
Style
Board to Board
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Contact Finish - Post
Gold
Material Flammability Rating
UL94 V-0
Mated Stacking Heights
-
Applications
-
Current Rating (Amps)
1A
Number of Rows
1
Contact Shape
Square
Contact Material
Phosphor Bronze
