S9197
S9197
S9197
S9197
Favorite Products
S9197
S9197

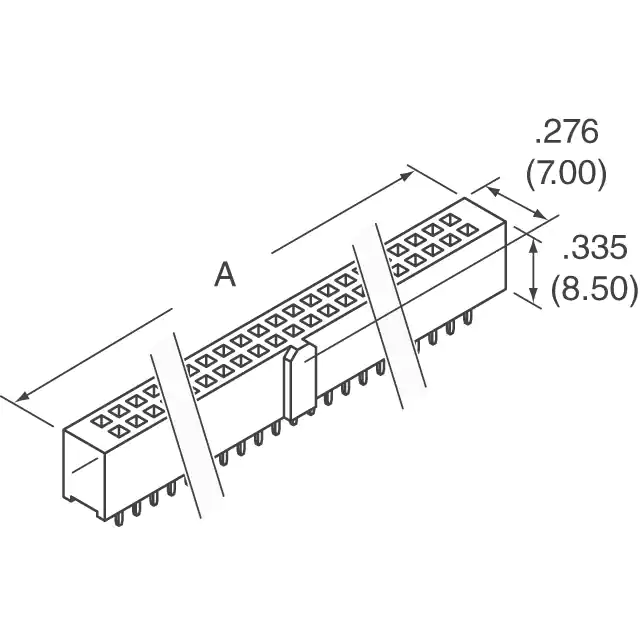

CONN HDR 20POS 0.1 GOLD PCB
10,020
10,020 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Operating Temperature
-40°C ~ 105°C
Applications
-
Number of Positions
20
Mounting Type
Through Hole
Mated Stacking Heights
-
Contact Shape
Square
Style
Board to Board
Termination
Solder
Features
Polarizing Key
Contact Material
Brass
Contact Finish Thickness - Post
Flash
Package
Tray
Insulation Height
0.335" (8.51mm)
Base Product Number
SFH11
Series
SFH11
Contact Type
Female Socket
Fastening Type
Push-Pull
Contact Finish Thickness - Mating
Flash
Contact Length - Post
0.126" (3.20mm)
Mfr
Sullins Connector Solutions
Connector Type
Header
Number of Positions Loaded
All
Contact Finish - Mating
Gold
Ingress Protection
-
Insulation Material
Polybutylene Terephthalate (PBT)
Insulation Color
Black
Current Rating (Amps)
3A
Voltage Rating
-
Number of Rows
2
Material Flammability Rating
UL94 V-0
Contact Finish - Post
Gold
Product Status
Active
Pitch - Mating
0.100" (2.54mm)
Row Spacing - Mating
0.100" (2.54mm)
