S5803-08
S5803-08
S5803-08
S5803-08
S5803-08
Favorite Products
S5803-08
S5803-08

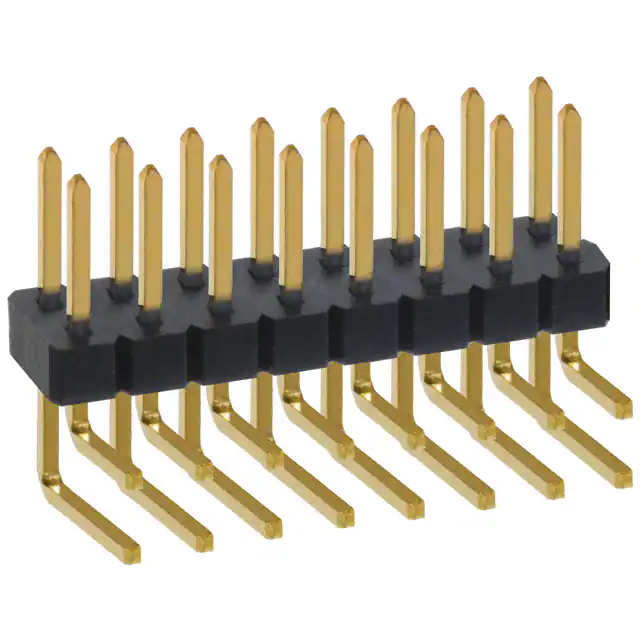

CONN HEADER R/A 16POS 2MM
3,062
3,062 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Ingress Protection
-
Fastening Type
Push-Pull
Base Product Number
NRPN082
Contact Shape
Square
Contact Material
Brass
Style
Board to Board or Cable
Package
Bulk
Contact Finish - Mating
Gold
Contact Finish - Post
Gold
Material Flammability Rating
UL94 V-0
Contact Length - Mating
0.141" (3.60mm)
Insulation Material
Polyamide (PA6T), Nylon 6T
Pitch - Mating
0.079" (2.00mm)
Number of Rows
2
Row Spacing - Mating
0.079" (2.00mm)
Mounting Type
Through Hole, Right Angle
Termination
Solder
Overall Contact Length
-
Mated Stacking Heights
-
Contact Length - Post
0.110" (2.79mm)
Contact Finish Thickness - Mating
Flash
Features
-
Current Rating (Amps)
2A
Series
-
Voltage Rating
150V
Number of Positions
16
Shrouding
Unshrouded
Insulation Height
0.157" (4.00mm)
Product Status
Active
Number of Positions Loaded
All
Contact Finish Thickness - Post
Flash
Applications
-
Mfr
Sullins Connector Solutions
Operating Temperature
-40°C ~ 105°C
Connector Type
Header
Contact Type
Male Pin
Insulation Color
Black
