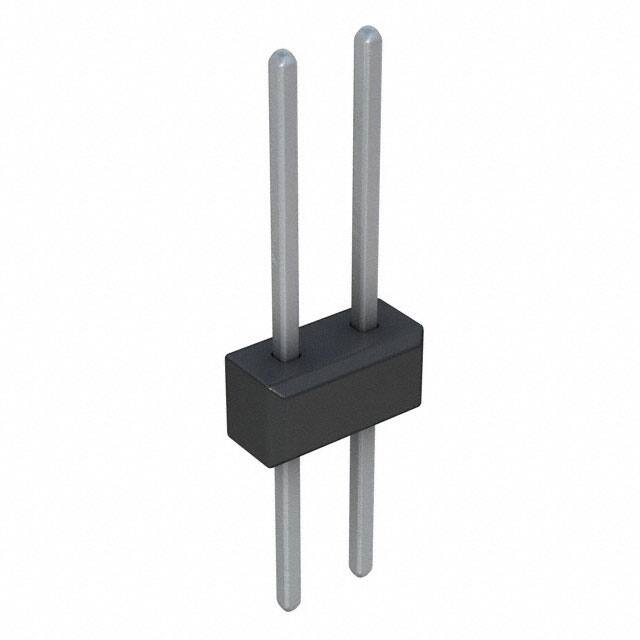

S2222-01
S2222-01
Favorite Products
S2222-01
S2222-01
CONN HEADER VERT 2POS
PTC01DFBN.pdf
3,007
3,007 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Contact Finish Thickness - Mating
100.0µin (2.54µm)
Features
-
Operating Temperature
-
Number of Rows
2
Style
Board to Board or Cable
Contact Finish - Post
Tin
Termination
Solder
Fastening Type
Push-Pull
Contact Length - Mating
0.318" (8.08mm)
Package
Bulk
Overall Contact Length
0.638" (16.21mm)
Contact Material
Copper Alloy
Contact Finish Thickness - Post
100.0µin (2.54µm)
Number of Positions
2
Number of Positions Loaded
All
Mfr
Sullins Connector Solutions
Pitch - Mating
-
Row Spacing - Mating
0.100" (2.54mm)
Ingress Protection
-
Shrouding
Unshrouded
Contact Finish - Mating
Tin
Material Flammability Rating
UL94 V-0
Voltage Rating
-
Mated Stacking Heights
-
Insulation Height
0.100" (2.54mm)
Current Rating (Amps)
3A
Base Product Number
PTC01
Series
-
Contact Type
Male Pin
Mounting Type
Through Hole
Contact Length - Post
0.220" (5.58mm)
Contact Shape
Square
Applications
-
Product Status
Obsolete
Connector Type
Header
Insulation Material
Thermoplastic, Polyester
Insulation Color
Black
