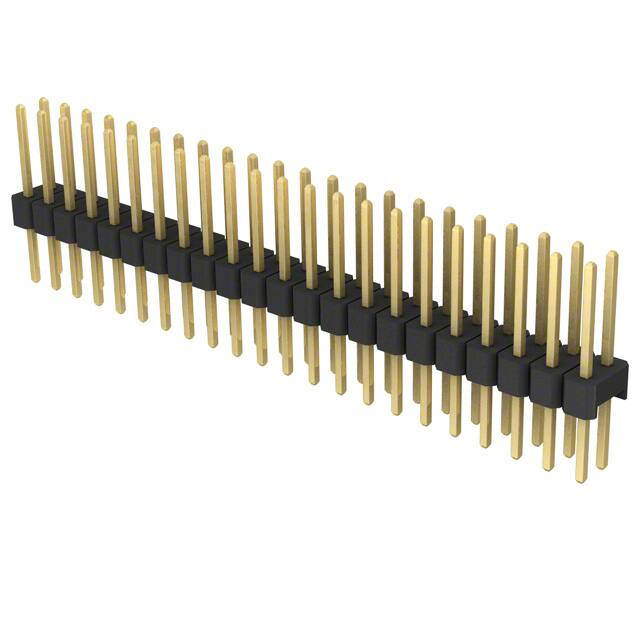

S2221EC-22
S2221EC-22
Favorite Products
S2221EC-22
S2221EC-22
CONN HEADER VERT 44POS 2.54MM
11636.pdf
3,024
3,024 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Number of Positions Loaded
All
Pitch - Mating
0.100" (2.54mm)
Termination
Solder
Insulation Height
0.098" (2.50mm)
Applications
-
Contact Finish - Post
Gold
Features
-
Ingress Protection
-
Contact Finish Thickness - Mating
Flash
Insulation Material
Polybutylene Terephthalate (PBT)
Contact Type
Male Pin
Number of Positions
44
Number of Rows
2
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Mating
Gold
Contact Finish Thickness - Post
Flash
Series
-
Product Status
Active
Material Flammability Rating
UL94 V-0
Mated Stacking Heights
-
Connector Type
Header, Breakaway
Fastening Type
Push-Pull
Contact Length - Post
0.220" (5.58mm)
Contact Length - Mating
0.318" (8.08mm)
Contact Material
Brass
Insulation Color
Black
Package
Bulk
Style
Board to Board or Cable
Shrouding
Unshrouded
Mounting Type
Through Hole
Overall Contact Length
0.637" (16.17mm)
Operating Temperature
-40°C ~ 105°C
Current Rating (Amps)
3A per Contact
Mfr
Sullins Connector Solutions
Contact Shape
Square
Voltage Rating
-
Base Product Number
PRPC022
