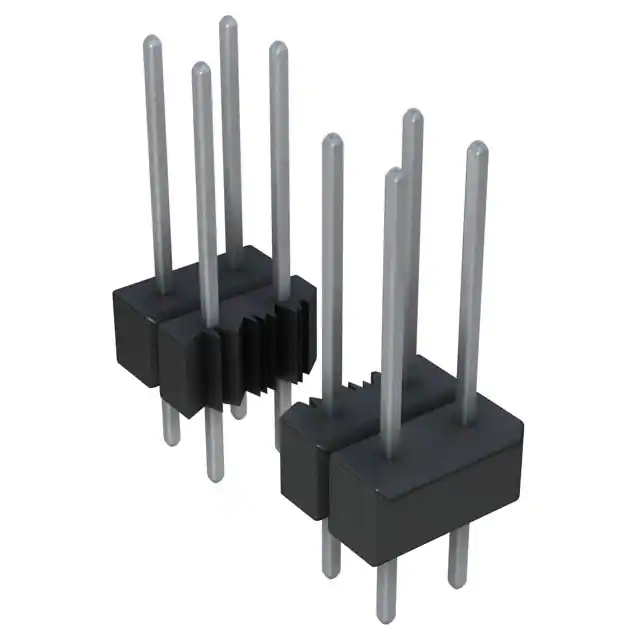

S2212-29
S2212-29
Favorite Products
S2212-29
S2212-29
CONN HEADER VERT 58POS 2.54MM
10,029
10,029 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Number of Positions
58
Insulation Height
0.100" (2.54mm)
Voltage Rating
-
Shrouding
Unshrouded
Contact Finish - Mating
Tin
Features
-
Current Rating (Amps)
3A
Applications
-
Number of Positions Loaded
All
Contact Finish Thickness - Mating
100.0µin (2.54µm)
Operating Temperature
-
Mated Stacking Heights
-
Package
Bulk
Mounting Type
Through Hole
Product Status
Obsolete
Style
Board to Board or Cable
Termination
Solder
Contact Length - Mating
0.318" (8.08mm)
Contact Shape
Square
Contact Material
Copper Alloy
Contact Finish Thickness - Post
100.0µin (2.54µm)
Pitch - Mating
0.100" (2.54mm)
Insulation Material
Thermoplastic, Polyester
Insulation Color
Black
Fastening Type
Push-Pull
Ingress Protection
-
Base Product Number
PTC29
Mfr
Sullins Connector Solutions
Series
-
Connector Type
Header
Contact Type
Male Pin
Number of Rows
2
Contact Length - Post
0.120" (3.05mm)
Overall Contact Length
0.538" (13.67mm)
Material Flammability Rating
UL94 V-0
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
