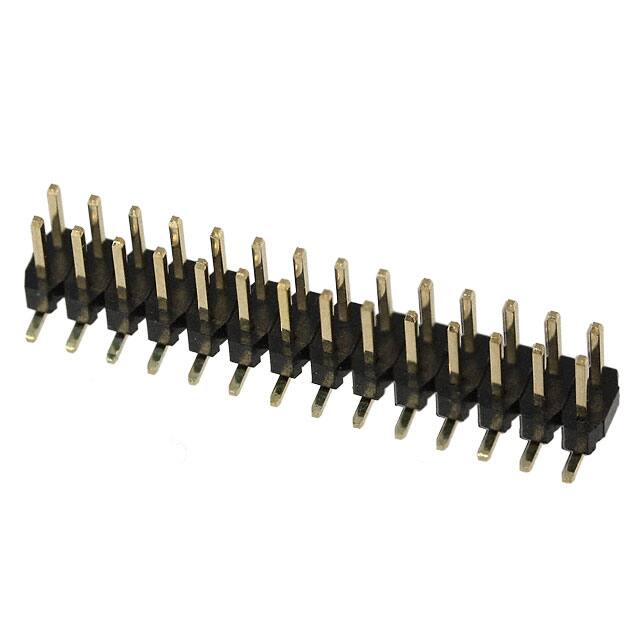

S2209-14
S2209-14
S2209-14
S2209-14
S2209-14
Favorite Products
S2209-14
S2209-14
CONN HEADER SMD 28POS 2MM
PRPNxx2MAMx.pdf
831
831 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Mated Stacking Heights
-
Contact Length - Post
-
Row Spacing - Mating
0.079" (2.00mm)
Style
Board to Board or Cable
Overall Contact Length
-
Contact Shape
Square
Operating Temperature
-40°C ~ 105°C
Number of Positions
28
Number of Rows
2
Insulation Color
Black
Mfr
Sullins Connector Solutions
Number of Positions Loaded
All
Insulation Material
Polyester
Current Rating (Amps)
1A
Contact Finish Thickness - Post
Flash
Applications
-
Pitch - Mating
0.079" (2.00mm)
Contact Finish - Post
Gold
Series
-
Connector Type
Header
Fastening Type
Push-Pull
Features
-
Material Flammability Rating
UL94 V-0
Product Status
Obsolete
Contact Length - Mating
0.157" (4.00mm)
Insulation Height
0.059" (1.50mm)
Base Product Number
PRPN142
Package
Bulk
Mounting Type
Surface Mount
Termination
Solder
Contact Finish Thickness - Mating
Flash
Contact Material
Brass
Voltage Rating
-
Contact Type
Male Pin
Shrouding
Unshrouded
Contact Finish - Mating
Gold
Ingress Protection
-
