S2012-02
S2012-02
Favorite Products
S2012-02
S2012-02

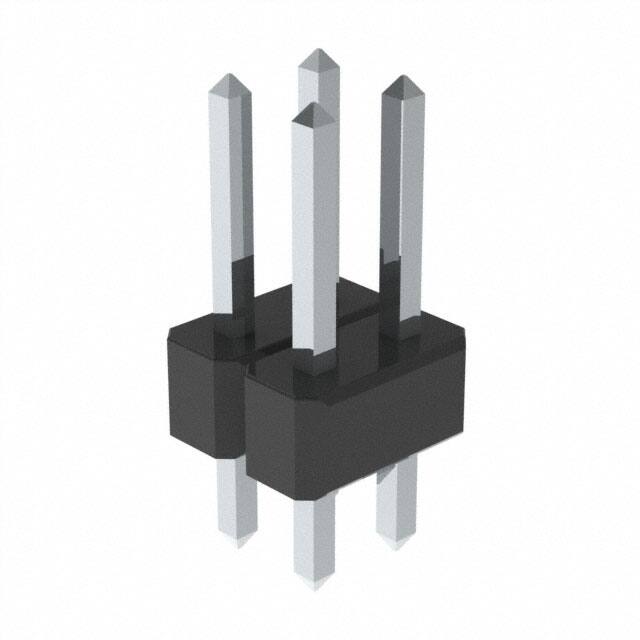

CONN HEADER VERT 4POS 2.54MM
PTC02DAAN.pdf
10,030
10,030 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Connector Type
Header
Insulation Height
0.100" (2.54mm)
Operating Temperature
-
Pitch - Mating
0.100" (2.54mm)
Mounting Type
Through Hole
Fastening Type
Push-Pull
Row Spacing - Mating
0.100" (2.54mm)
Style
Board to Board or Cable
Shrouding
Unshrouded
Contact Length - Mating
0.230" (5.84mm)
Contact Shape
Square
Contact Material
Copper Alloy
Voltage Rating
-
Number of Positions
4
Contact Length - Post
0.120" (3.05mm)
Contact Finish Thickness - Mating
100.0µin (2.54µm)
Contact Finish - Post
Tin
Mated Stacking Heights
-
Contact Finish Thickness - Post
100.0µin (2.54µm)
Base Product Number
PTC02
Contact Type
Male Pin
Number of Rows
2
Termination
Solder
Contact Finish - Mating
Tin
Features
-
Ingress Protection
-
Current Rating (Amps)
3A
Applications
-
Mfr
Sullins Connector Solutions
Material Flammability Rating
UL94 V-0
Insulation Color
Black
Series
-
Package
Bulk
Product Status
Obsolete
Number of Positions Loaded
All
Overall Contact Length
0.450" (11.43mm)
Insulation Material
Thermoplastic, Polyester
