P14286
P14286
Favorite Products
P14286
P14286

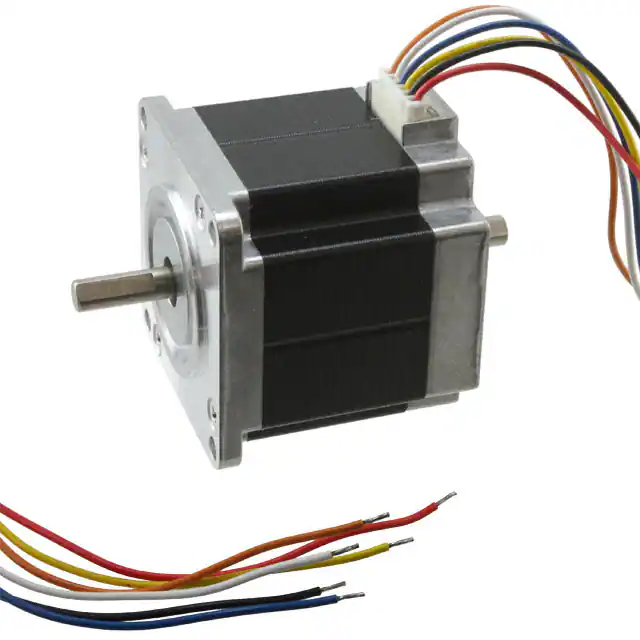

STEP MOTOR HYBRID DUAL SHAFT 24V
Stepper Motors
3,025
3,025 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Series
23KM
Coil Type
Unipolar
Size / Dimension
Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size
23
Operating Temperature
-10°C ~ 50°C
Coil Resistance
1.7 Ohms
Current Rating (Amps)
2 A
Diameter - Shaft
0.250" (6.35mm)
Voltage - Rated
24VDC
Mounting Hole Spacing
1.856" (47.14mm)
Length - Shaft and Bearing
0.984" (25.00mm)
Step Angle
1.8°
Approval Agency
-
Type
Hybrid, Dual Shaft
Steps per Revolution
200
Product Status
Active
Termination Style
Wire Leads with Connector
Weight
1.5 lbs (680.4 g)
Mfr
NMB Technologies Corporation
Package
Bulk
Accuracy
±5%
Torque - Holding (oz-in / mNm)
127.47 / 900
Features
Flatted Shaft
Rotor Inertia
200gcm²
Base Product Number
23KM
