H3660
H3660
H3660
Favorite Products
H3660
H3660
Hirose Electric Co Ltd

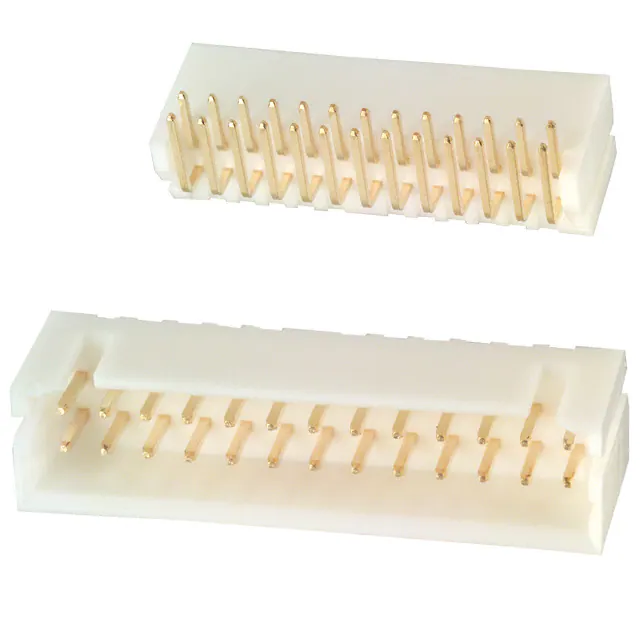

CONN HEADER R/A 26POS 2.5MM
Headers, Male Pins
3,005
3,005 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Contact Shape
Square
Pitch - Mating
0.098" (2.50mm)
Contact Length - Mating
0.177" (4.50mm)
Product Status
Active
Number of Rows
2
Features
Keying Slot
Number of Positions Loaded
All
Shrouding
Shrouded - 4 Wall
Mounting Type
Through Hole, Right Angle
Termination
Solder
Insulation Height
0.339" (8.61mm)
Contact Type
Male Pin
Contact Finish - Post
-
Series
DF1B
Row Spacing - Mating
0.098" (2.50mm)
Fastening Type
Push-Pull
Ingress Protection
-
Mfr
Hirose Electric Co Ltd
Contact Finish - Mating
Gold
Insulation Color
White
Contact Finish Thickness - Post
-
Connector Type
Header
Number of Positions
26
Style
Board to Cable/Wire
Contact Length - Post
0.130" (3.30mm)
Contact Finish Thickness - Mating
8.00µin (0.203µm)
Insulation Material
Polyamide (PA), Nylon
Operating Temperature
-35°C ~ 85°C
Material Flammability Rating
UL94 V-0
Current Rating (Amps)
-
Package
Bulk
Overall Contact Length
-
Contact Material
Brass
Voltage Rating
250V
Mated Stacking Heights
-
Applications
-
Base Product Number
DF1B
