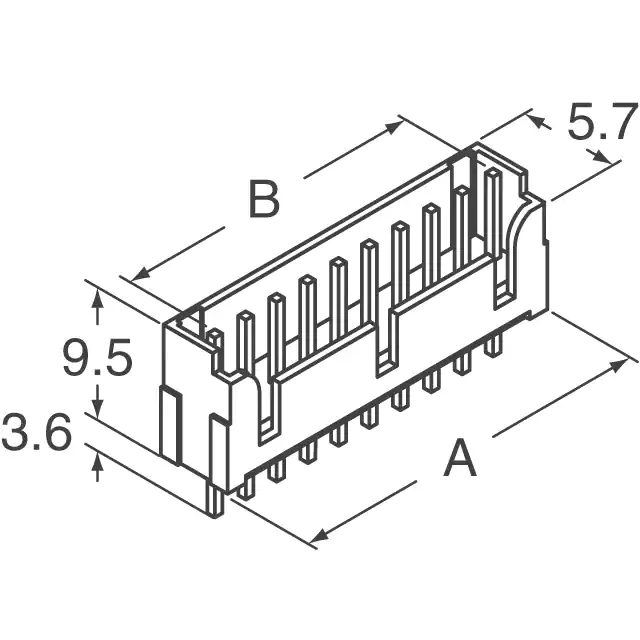

H3513
H3513
H3513
Favorite Products
H3513
H3513
Hirose Electric Co Ltd
CONN HEADER VERT 15POS 2.5MM
DF1B-R26.pdf
10,089
10,089 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Contact Length - Mating
0.177" (4.50mm)
Series
DF1B
Contact Type
Male Pin
Style
Board to Cable/Wire
Features
Keying Slot
Voltage Rating
250V
Mfr
Hirose Electric Co Ltd
Number of Positions
15
Mounting Type
Through Hole
Package
Bulk
Termination
Solder
Insulation Height
0.374" (9.50mm)
Product Status
Obsolete
Row Spacing - Mating
-
Shrouding
Shrouded - 4 Wall
Insulation Material
Polyamide (PA), Nylon
Applications
-
Pitch - Mating
0.098" (2.50mm)
Number of Positions Loaded
All
Contact Finish - Mating
Tin
Contact Finish - Post
-
Operating Temperature
-35°C ~ 85°C
Ingress Protection
-
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Length - Post
0.142" (3.60mm)
Overall Contact Length
0.417" (10.60mm)
Contact Shape
Square
Mated Stacking Heights
14mm
Connector Type
Header
Number of Rows
1
Fastening Type
Push-Pull
Contact Finish Thickness - Mating
-
Contact Material
Brass
Insulation Color
White
Current Rating (Amps)
-
