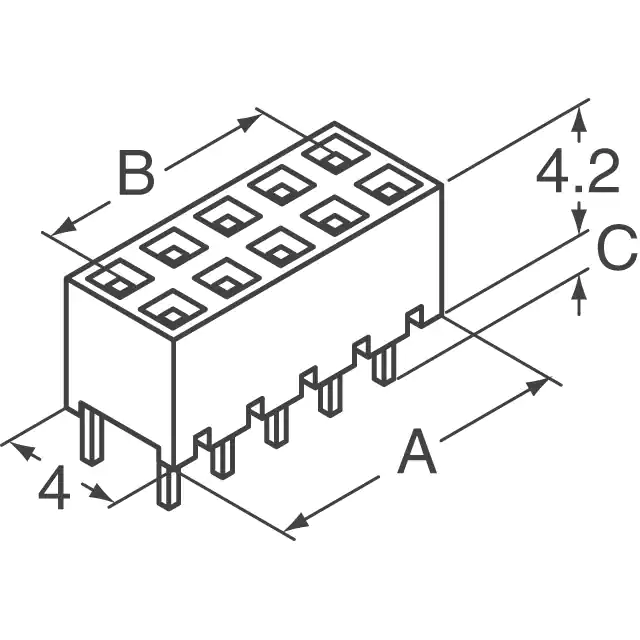

H1864
H1864
H1864
Favorite Products
H1864
H1864
Hirose Electric Co Ltd
CONN RCPT 8POS 0.079 GOLD PCB
A3,A4_Series.pdf
3,092
3,092 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Insulation Color
Black
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
39.4µin (1.00µm)
Connector Type
Receptacle
Row Spacing - Mating
0.079" (2.00mm)
Contact Finish Thickness - Mating
8.00µin (0.203µm)
Contact Length - Post
0.079" (2.00mm)
Features
-
Voltage Rating
200VAC
Contact Shape
Square
Number of Positions
8
Insulation Height
0.165" (4.20mm)
Contact Finish - Post
Tin
Mfr
Hirose Electric Co Ltd
Contact Type
Female Socket
Operating Temperature
-55°C ~ 85°C
Contact Material
Phosphor Bronze
Product Status
Obsolete
Number of Positions Loaded
All
Number of Rows
2
Contact Finish - Mating
Gold
Mated Stacking Heights
5.1mm, 6mm
Pitch - Mating
0.079" (2.00mm)
Fastening Type
Push-Pull
Series
A3
Applications
General Purpose, Telecommunications
Style
Board to Board or Cable
Ingress Protection
-
Current Rating (Amps)
1A
Package
Tube
Mounting Type
Through Hole
Termination
Solder
Insulation Material
Polybutylene Terephthalate (PBT)
