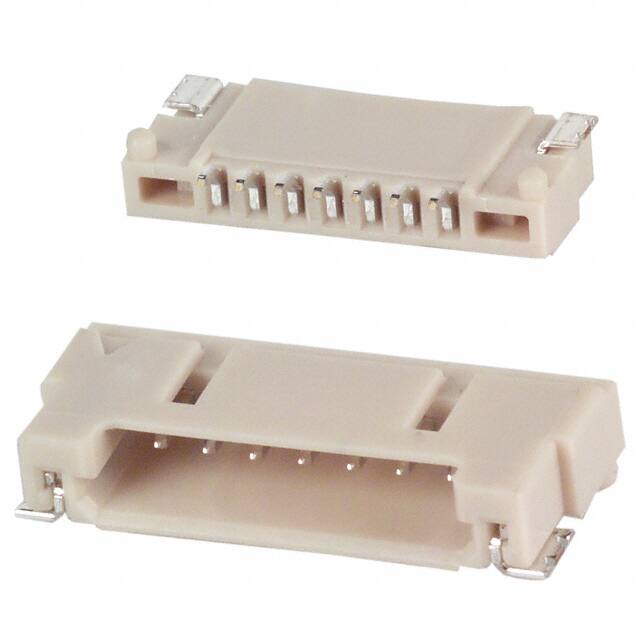

H1516
H1516
Favorite Products
H1516
H1516
Hirose Electric Co Ltd
CONN HEADER SMD R/A 7POS 1.25MM
DF14.pdf
3,082
3,082 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Number of Rows
1
Contact Length - Post
-
Insulation Material
Polyamide (PA), Nylon
Product Status
Obsolete
Style
Board to Cable/Wire
Connector Type
Header
Row Spacing - Mating
-
Number of Positions Loaded
All
Shrouding
Shrouded - 4 Wall
Contact Length - Mating
-
Features
Board Guide, Solder Retention
Mounting Type
Surface Mount, Right Angle
Insulation Color
Beige
Current Rating (Amps)
1A
Voltage Rating
150V
Contact Finish Thickness - Post
-
Applications
-
Package
Tube
Insulation Height
0.098" (2.50mm)
Contact Shape
Square
Contact Finish - Post
Tin
Contact Material
Brass
Series
DF14
Fastening Type
Push-Pull
Overall Contact Length
-
Contact Finish Thickness - Mating
-
Ingress Protection
-
Mated Stacking Heights
-
Number of Positions
7
Contact Finish - Mating
Tin
Material Flammability Rating
UL94 V-0
Contact Type
Male Pin
Pitch - Mating
0.049" (1.25mm)
Operating Temperature
-35°C ~ 85°C
Mfr
Hirose Electric Co Ltd
Termination
Solder
