H126510
H126510
H126510
Favorite Products

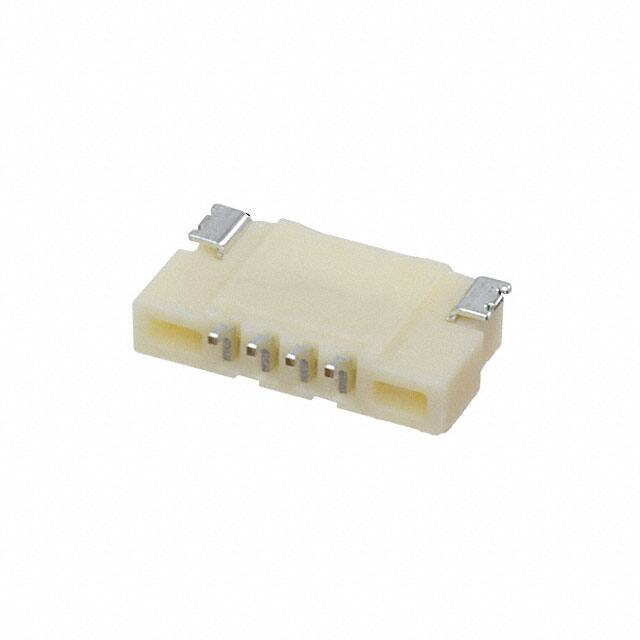

H126510
H126510
Hirose Electric Co Ltd
CONN HEADER SMD R/A 4POS 1.25MM

DF14-2628SCF.pdf

841
841 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Pitch - Mating
0.049" (1.25mm)
Contact Finish Thickness - Mating
39.4µin (1.00µm)
Mfr
Hirose Electric Co Ltd
Series
DF14
Package
Tube
Termination
Solder
Overall Contact Length
-
Contact Material
Brass
Operating Temperature
-35°C ~ 85°C
Material Flammability Rating
UL94 V-0
Shrouding
Shrouded - 4 Wall
Current Rating (Amps)
1A
Style
Board to Cable/Wire
Contact Finish - Mating
Tin-Copper
Contact Type
Male Pin
Contact Shape
Square
Ingress Protection
-
Insulation Color
Beige
Connector Type
Header
Features
Solder Retention
Voltage Rating
150VAC
Product Status
Obsolete
Number of Rows
1
Row Spacing - Mating
-
Contact Length - Post
-
Mated Stacking Heights
-
Contact Finish Thickness - Post
39.4µin (1.00µm)
Applications
-
Number of Positions
4
Mounting Type
Surface Mount, Right Angle
Contact Length - Mating
0.086" (2.20mm)
Insulation Height
0.098" (2.50mm)
Fastening Type
Push-Pull
Insulation Material
Polyamide (PA), Nylon
Number of Positions Loaded
All
Contact Finish - Post
Tin-Copper
