H123829
H123829
Favorite Products
H123829
H123829
Hirose Electric Co Ltd

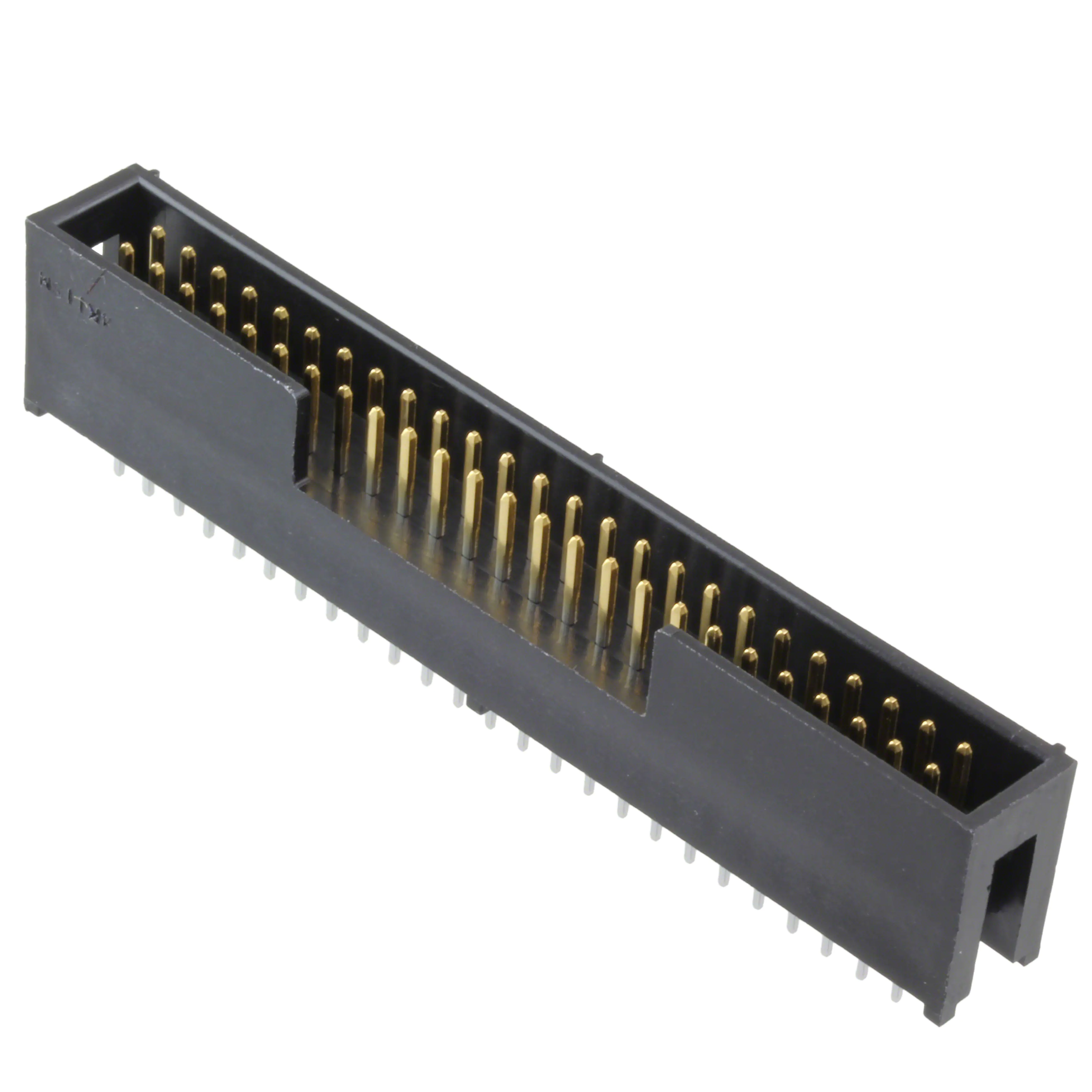

CONN HEADER VERT 50POS 2.54MM
3,075
3,075 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Package
Tray
Product Status
Active
Overall Contact Length
0.622" (15.80mm)
Contact Finish Thickness - Mating
8.00µin (0.203µm)
Features
Keying Slot
Termination
Solder
Number of Rows
2
Contact Material
Brass
Insulation Material
Polybutylene Terephthalate (PBT)
Row Spacing - Mating
0.100" (2.54mm)
Operating Temperature
-55°C ~ 85°C
Insulation Color
Black
Contact Type
Male Pin
Applications
-
Series
HIF3
Number of Positions Loaded
All
Style
Board to Cable/Wire
Contact Length - Post
0.130" (3.30mm)
Contact Finish - Post
Tin
Ingress Protection
-
Connector Type
Header
Contact Length - Mating
0.236" (6.00mm)
Mated Stacking Heights
-
Base Product Number
HIF3
Mfr
Hirose Electric Co Ltd
Fastening Type
Latch Holder
Insulation Height
0.547" (13.90mm)
Contact Shape
Square
Material Flammability Rating
UL94 V-0
Shrouding
Shrouded - 4 Wall
Mounting Type
Through Hole
Contact Finish - Mating
Gold
Voltage Rating
200V
Contact Finish Thickness - Post
78.7µin (2.00µm)
Pitch - Mating
0.100" (2.54mm)
Number of Positions
50
Current Rating (Amps)
1A
