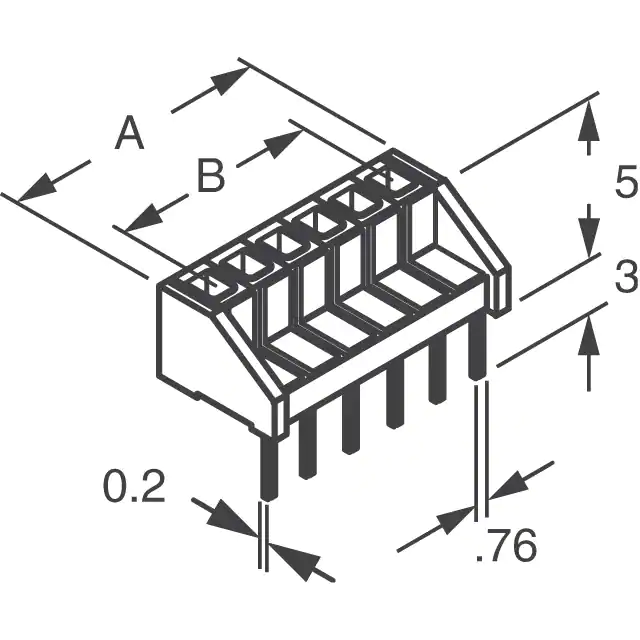

H10660
H10660
H10660
Favorite Products
H10660
H10660
Hirose Electric Co Ltd
CONN RCPT 11POS 0.1 TIN PCB
MDF7.pdf
3,057
3,057 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Series
MDF7
Style
Board to Board
Number of Rows
1
Insulation Color
Black
Contact Type
Female Socket
Number of Positions
11
Pitch - Mating
0.100" (2.54mm)
Contact Length - Post
0.118" (3.00mm)
Mfr
Hirose Electric Co Ltd
Connector Type
Receptacle, Bottom Entry
Fastening Type
Push-Pull
Package
Bulk
Number of Positions Loaded
All
Contact Finish - Post
Tin
Mounting Type
Through Hole
Ingress Protection
-
Base Product Number
MDF7
Row Spacing - Mating
-
Operating Temperature
-35°C ~ 85°C
Contact Finish - Mating
Tin
Insulation Height
0.197" (5.00mm)
Features
-
Current Rating (Amps)
3A
Contact Material
Phosphor Bronze
Mated Stacking Heights
-
Voltage Rating
250VAC
Contact Shape
Square
Product Status
Active
Termination
Solder
Contact Finish Thickness - Mating
78.7µin (2.00µm)
Material Flammability Rating
UL94 V-0
Applications
-
Insulation Material
Polyamide (PA), Nylon
Contact Finish Thickness - Post
78.7µin (2.00µm)
