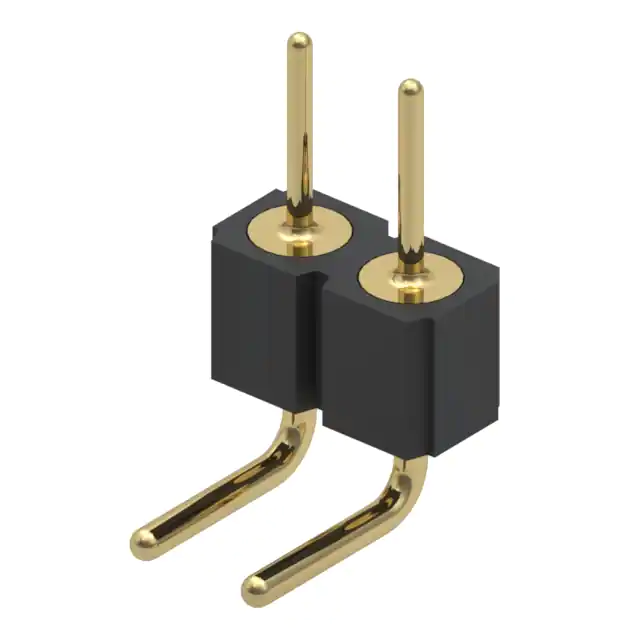

ED8564-02
ED8564-02
ED8564-02
Favorite Products
ED8564-02
ED8564-02
CONN HEADER R/A 2POS 2.54MM


10,010
10,010 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Features
-
Material Flammability Rating
-
Product Status
Active
Ingress Protection
-
Base Product Number
399-10
Fastening Type
Push-Pull
Overall Contact Length
-
Operating Temperature
-
Contact Type
Male Pin
Number of Positions
2
Style
Board to Board
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT)
Mated Stacking Heights
-
Connector Type
Header
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Contact Finish - Post
Gold
Insulation Color
Black
Voltage Rating
-
Series
399
Shrouding
Unshrouded
Termination
Solder
Contact Length - Post
0.126" (3.20mm)
Insulation Height
0.100" (2.54mm)
Contact Shape
Circular
Mfr
Mill-Max Manufacturing Corp.
Number of Positions Loaded
All
Contact Finish - Mating
Gold
Applications
-
Pitch - Mating
0.100" (2.54mm)
Mounting Type
Through Hole, Right Angle
Contact Length - Mating
0.157" (4.00mm)
Current Rating (Amps)
-
Package
Bulk
Number of Rows
1
Row Spacing - Mating
-
Contact Material
Brass Alloy
Contact Finish Thickness - Post
10.0µin (0.25µm)
