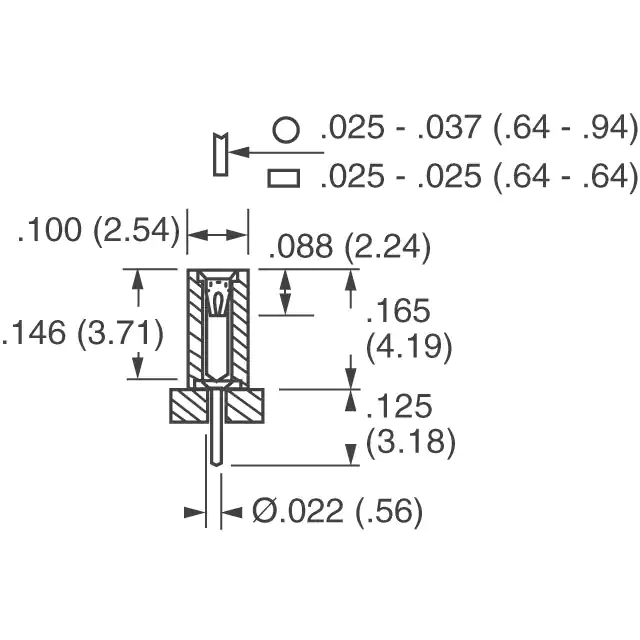

ED6536-13
ED6536-13
ED6536-13
ED6536-13
Favorite Products
ED6536-13
ED6536-13
CONN RCPT 13POS 0.1 GOLD PCB


881
881 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Contact Finish - Post
Tin
Series
801
Mounting Type
Through Hole
Features
-
Contact Type
Female Socket
Number of Positions
13
Product Status
Active
Style
Board to Board
Number of Positions Loaded
All
Number of Rows
1
Contact Length - Post
0.125" (3.18mm)
Pitch - Mating
0.100" (2.54mm)
Ingress Protection
-
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Base Product Number
801-43
Row Spacing - Mating
-
Fastening Type
Push-Pull
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Voltage Rating
-
Package
Bulk
Insulation Color
Black
Operating Temperature
-55°C ~ 125°C
Contact Finish Thickness - Post
200.0µin (5.08µm)
Connector Type
Receptacle
Termination
Solder
Insulation Height
0.165" (4.20mm)
Mated Stacking Heights
-
Current Rating (Amps)
4.5A
Contact Shape
Circular
Mfr
Mill-Max Manufacturing Corp.
Material Flammability Rating
UL94 V-0
Applications
-
Contact Material
Beryllium Copper
