ED2381
ED2381
ED2381
ED2381
Favorite Products
ED2381
ED2381

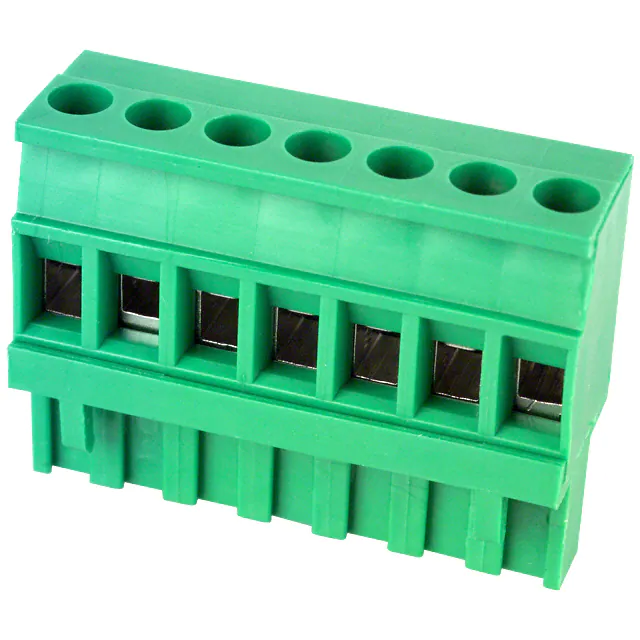

TERM BLOCK PLUG 7POS 90DEG 5MM
ed1100.pdf
3,052
3,052 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Product Status
Active
Number of Levels
1
Wire Strip Length
7mm
Torque - Screw
0.5 Nm (4.4 Lb-In)
Package
Bulk
Pitch
0.197" (5.00mm)
Contact Mating Finish
-
Contact Material
Copper Tin Alloy
Base Product Number
ED1100
Wire Gauge or Range - mm²
2.5mm²
Mfr
On Shore Technology Inc.
Termination Style
Screw
Current - IEC
-
Wire Gauge or Range - AWG
10-22 AWG
Features
Retention Latches (Wire Side)
Material Flammability Rating
UL94 V-0
Contact Tail Length
-
Type
Plug, Female Sockets
Header Orientation
-
Plug Wire Entry
90°
Mounting Type
Free Hanging (In-Line)
Current - UL
15 A
Color
Green
Number of Positions
7
Screw Size
M3
Housing Material
Polyamide (PA), Nylon
Series
ED1100
Positions Per Level
7
Voltage - UL
300 V
Operating Temperature
-30°C ~ 105°C
Ingress Protection
-
Insulation Height
1.043" (26.50mm)
