ED1572
ED1572
ED1572
ED1572
Favorite Products
ED1572
ED1572

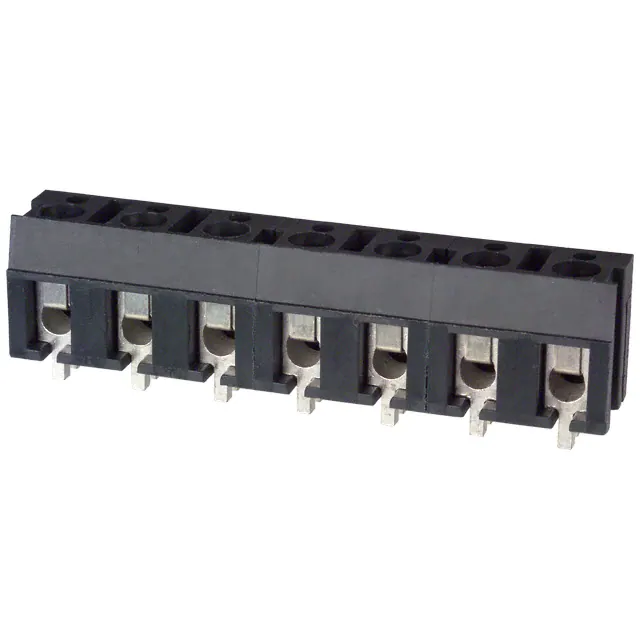

TERM BLK 7POS SIDE ENT 7.5MM PCB
ED114XXDS.pdf
3,032
3,032 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Mfr
On Shore Technology Inc.
Positions Per Level
7
Pitch
0.295" (7.50mm)
Current
15 A
Mating Orientation
Horizontal with Board
Series
ED114/DS
Housing Material
Polyamide (PA), Nylon
Contact Material - Plating
Brass
Clamp Material - Plating
Steel, Stainless
Package
Bulk
Voltage
300 V
Screw Thread
M3
Wire Gauge
12-22 AWG
Features
Interlocking (Side)
Mounting Type
Through Hole
Wire Termination
Screw - Leaf Spring, Wire Guard
Color
Gray
Base Product Number
ED114
Product Status
Active
Screw Material - Plating
-
Number of Levels
1
Operating Temperature
-30°C ~ 105°C
Torque - Screw
0.8 Nm (7.1 Lb-In)
