CHA40G
CHA40G
CHA40G
CHA40G
Favorite Products
CHA40G
CHA40G
CW Industries

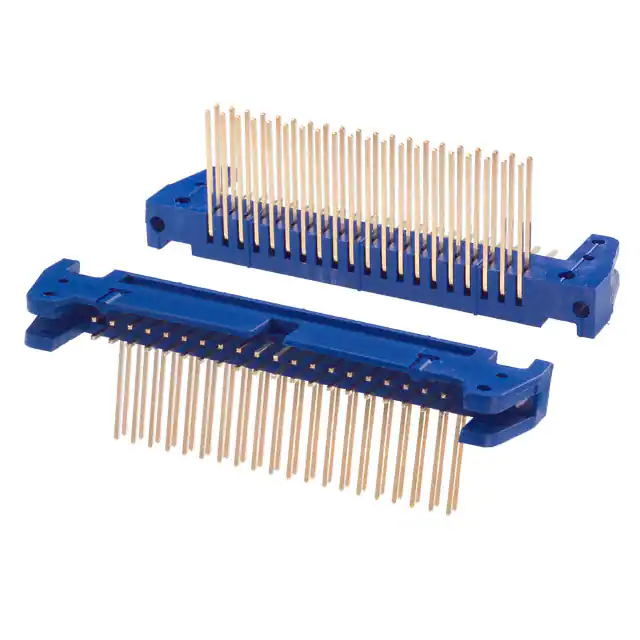

CONN HEADER R/A 40POS 2.54MM
3,002
3,002 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Style
Board to Cable/Wire
Current Rating (Amps)
1A
Contact Length - Mating
0.240" (6.10mm)
Insulation Material
Thermoplastic
Applications
-
Connector Type
Header
Contact Type
Male Pin
Termination
Wire Wrap
Contact Finish - Post
Nickel
Fastening Type
Push-Pull
Insulation Height
0.291" (7.40mm)
Mated Stacking Heights
-

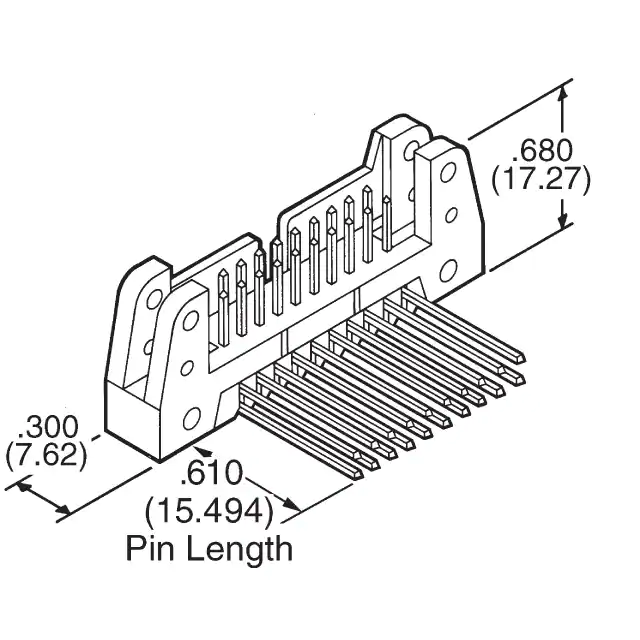

Contact Length - Post
0.610" (15.49mm)
Ingress Protection
-
Insulation Color
Blue
Contact Finish Thickness - Post
50.0µin (1.27µm)
Base Product Number
CWN-320
Mfr
CW Industries
Number of Positions
40
Overall Contact Length
-
Contact Finish - Mating
Gold
Pitch - Mating
0.100" (2.54mm)
Shrouding
Shrouded - 4 Wall
Contact Shape
Circular
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Operating Temperature
-55°C ~ 125°C
Package
Bulk
Number of Rows
2
Row Spacing - Mating
0.100" (2.54mm)
Number of Positions Loaded
All
Features
Keying Slot, Mounting Flange
Series
CWN
Product Status
Active
Mounting Type
Through Hole, Right Angle
Contact Material
Phosphor Bronze
Material Flammability Rating
UL94 V-0
Voltage Rating
-
